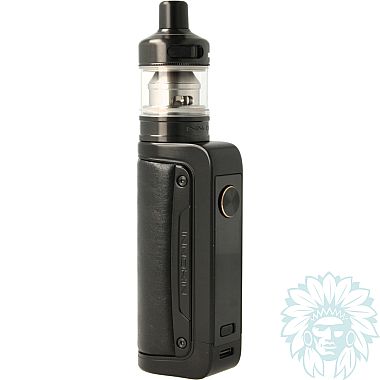

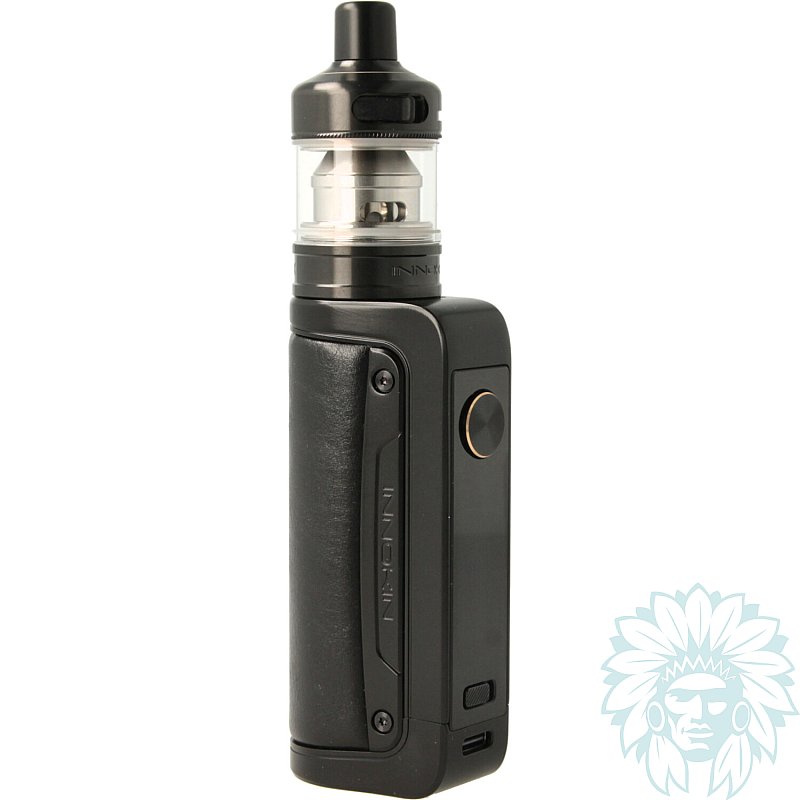

Innokin Coolfire Z80 nex Kit

The renowned Innokin brand is expanding its Coolfire range with the brand-new Coolfire Z80 Nex kit, featuring a number of changes and improvements to both the box mod and the clearomizer.

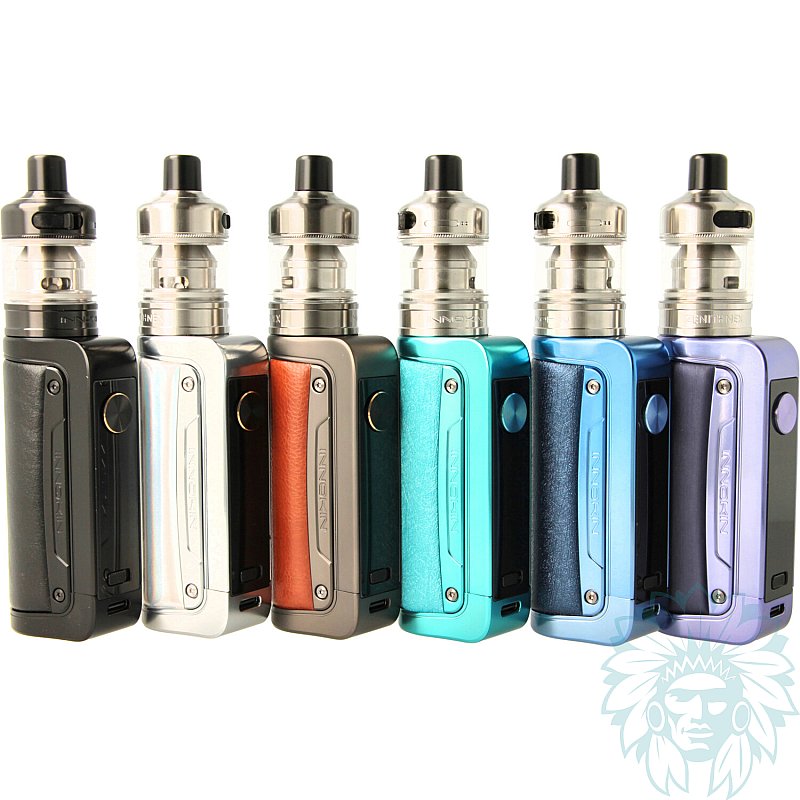

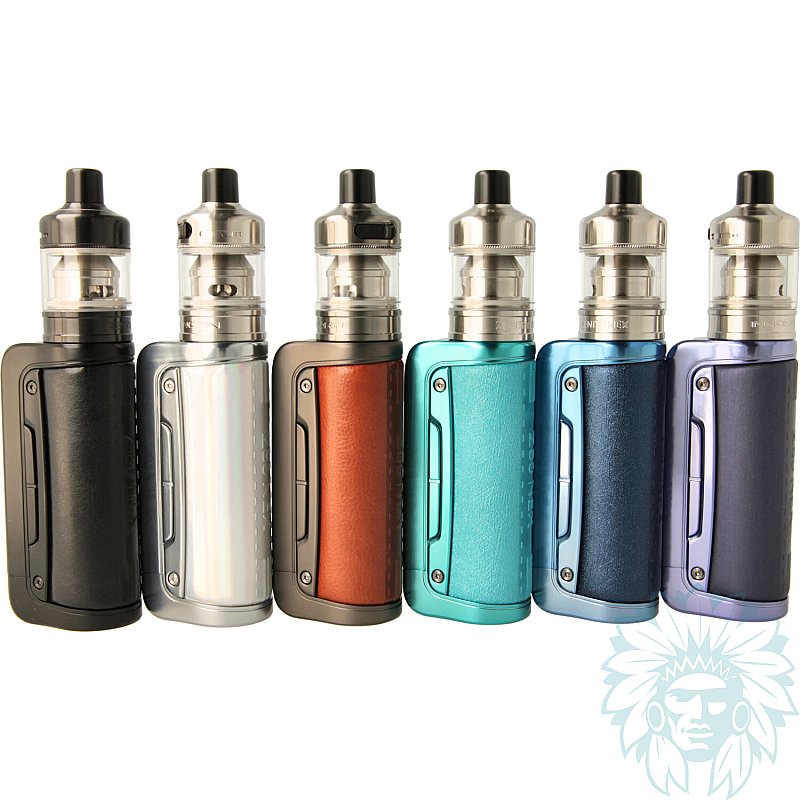

Versatile, compact and leak-proof, this new kit follows the design of its predecessor, the Z80, with a rounded shape at the back and a finish that varies depending on the model, offering a pleasant, ergonomic grip.

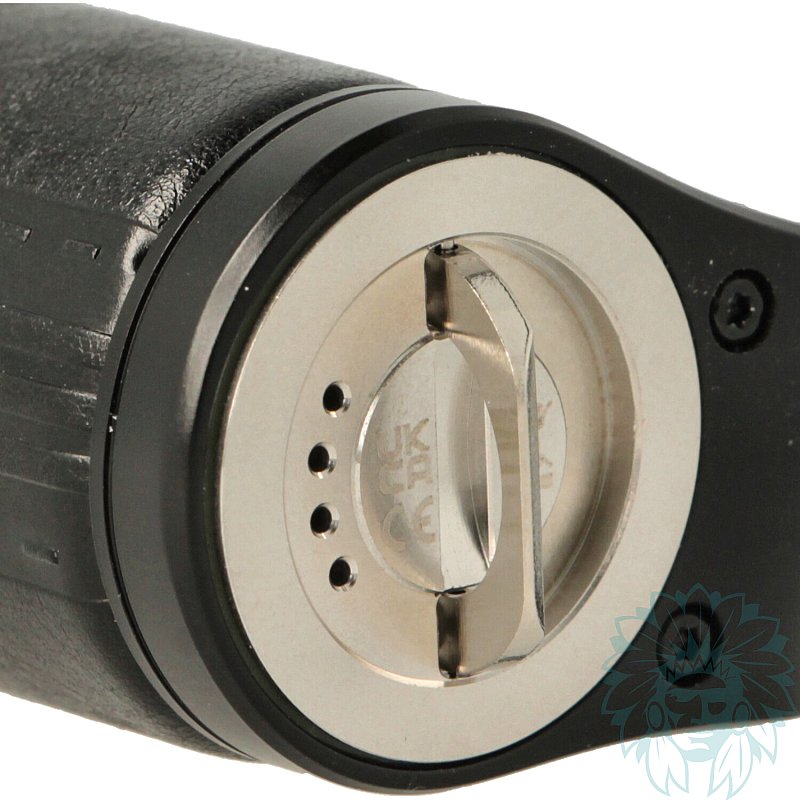

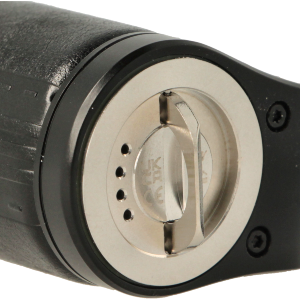

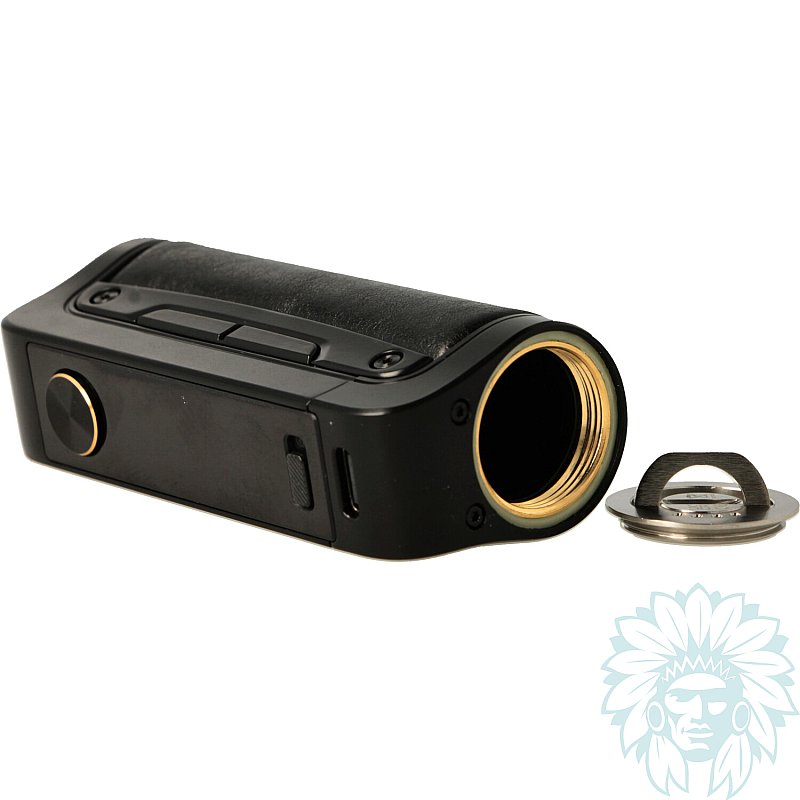

Battery cover under the box

The Coolfire Z80 Nex runs on an 18650 battery, delivering a maximum power of 80W. The battery is easily accessed via a hatch on the underside of the box, with four vent holes for added safety.
You can occasionally recharge your battery directly on the box, thanks to a USB-C charging socket on the front of the box.

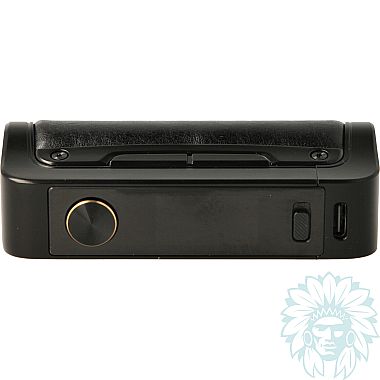

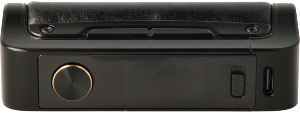

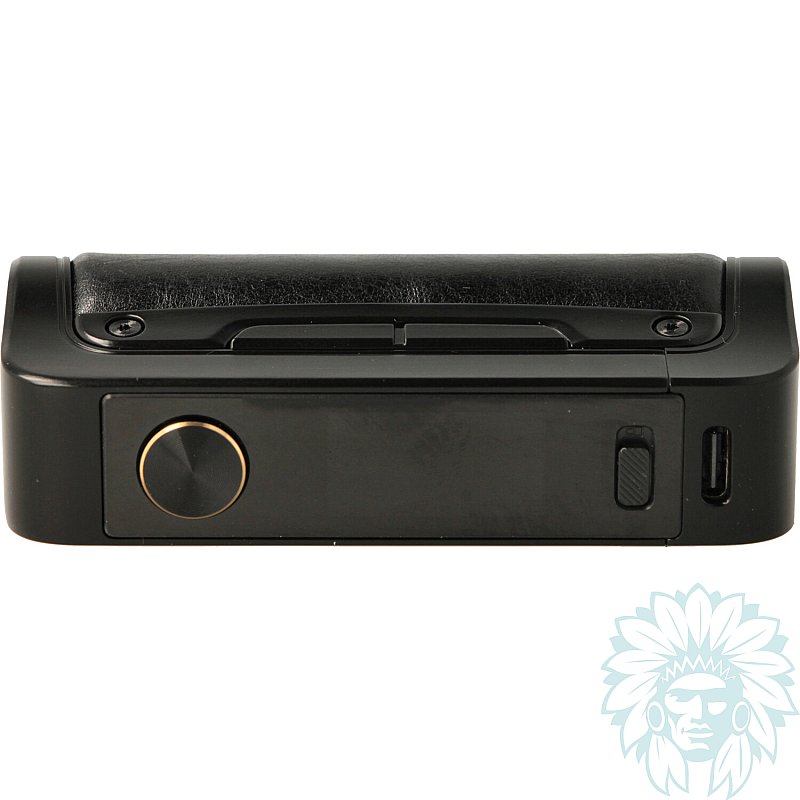

Front panel of Coolfire Z80 Nex box mod

The front panel features the 'Switch' button, a 0.96" TFT screen displaying all the information you need to vape, and a lock button.

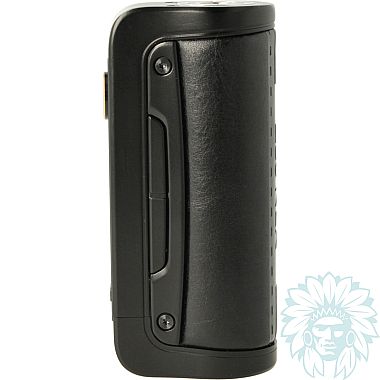

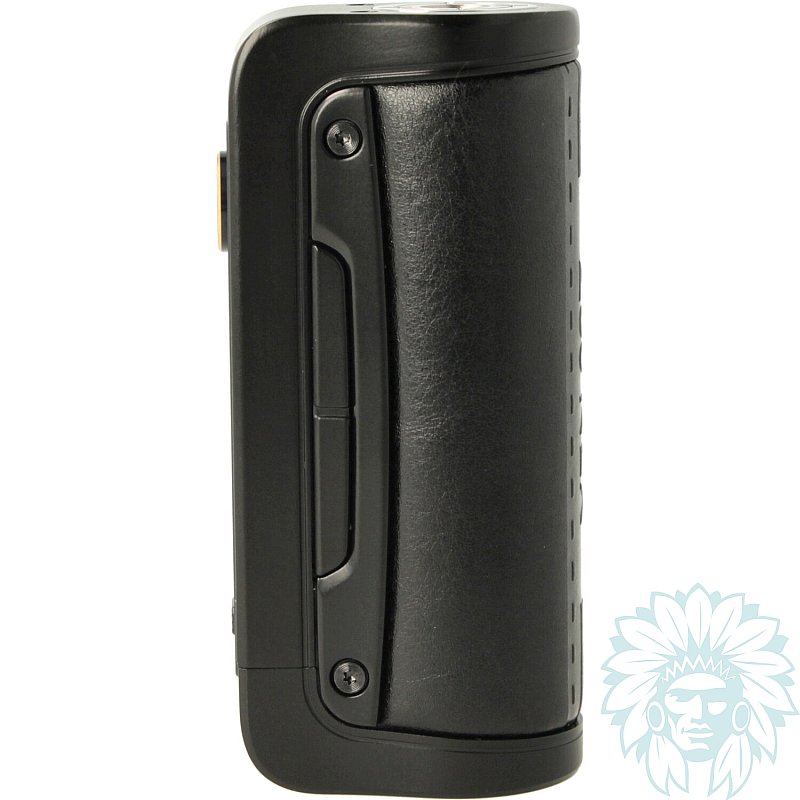

Two adjustment buttons, discreetly placed on the edge of the box, allow you to adjust the power.

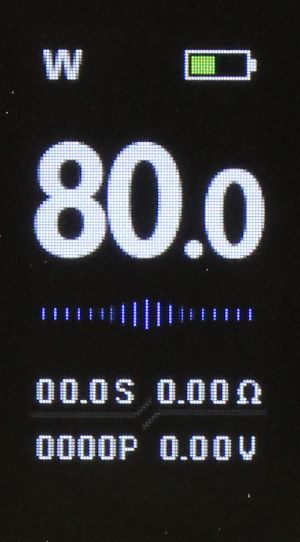

0.96" TFT screen

For simplicity's sake, Innokin has chosen not to add any complex functions: with the Z80 Nex, you vape exclusively in Variable Watt mode.

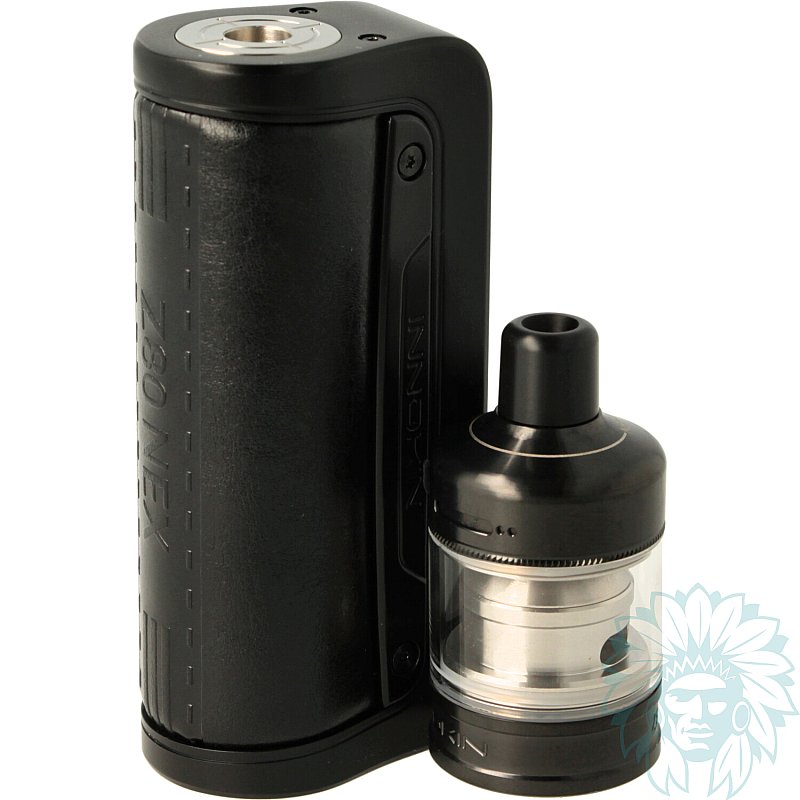

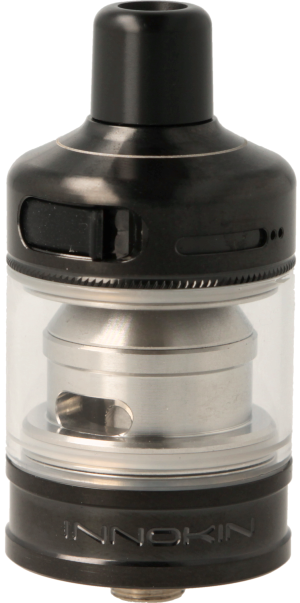

Innokin Zenith Nex clearomizer

The box mod is accompanied by the Zenith Nex clearomizer, a versatile model with a diameter of 26 mm and a 5 ml tank, ensuring good autonomy.

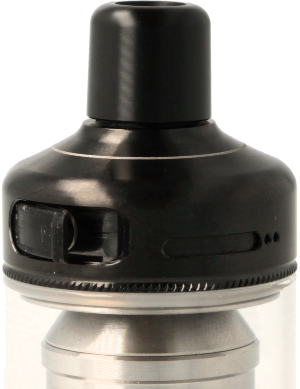

Filler cap and adjustable airflow

Entirely designed to prevent leaks, the airflow and filler are located at the top of the Zenith Nex. The airflow is adjustable via a steel ring, allowing you to adjust the draw, more or less airy, depending on the coil installed. This same ring also gives access to the Teflon cover for filling the tank: when the airflow is opened, the cover is hidden under the ring, further reducing the risk of leaks.

The clearomizer is fitted with a slim drip tip, ideal for MTL (indirect) puffing. A second, wider drip tip is included for RDL (restrictive direct) draw.

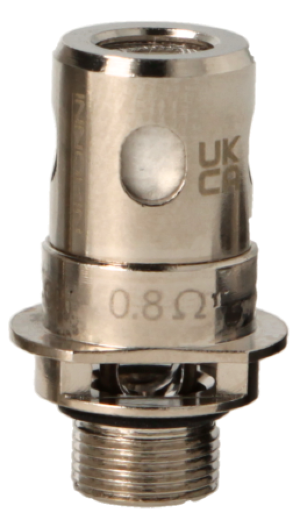

Z Coil Nex 0.8 ohm coil

To coincide with the release of the Coolfire Z80 Nex, Innokin is expanding its acclaimed Z Coil range with three new coils featuring a redesigned Mesh technology for more power and vapor. Two coils are included in the pack: 0.8 ohm (pre-installed) and 0.3 ohm.

Power usage :

• Z Coil Nex 0.8 ohm with an operating range of between 15 and 18 W for indirect draw.
• Z Coil Nex 0.3 ohm with an operating range of between 30 and 40 W for direct draw.

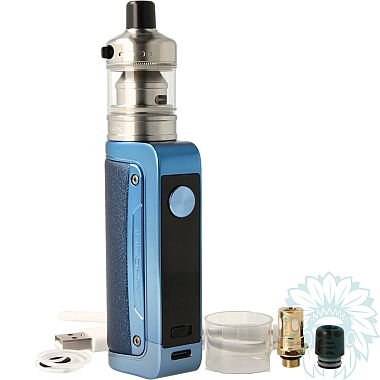

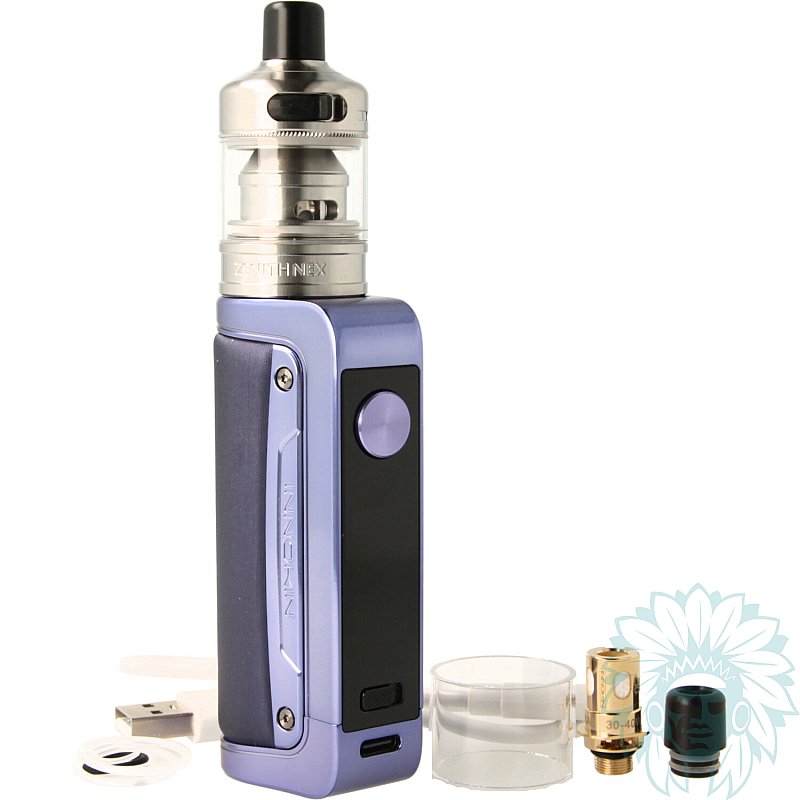

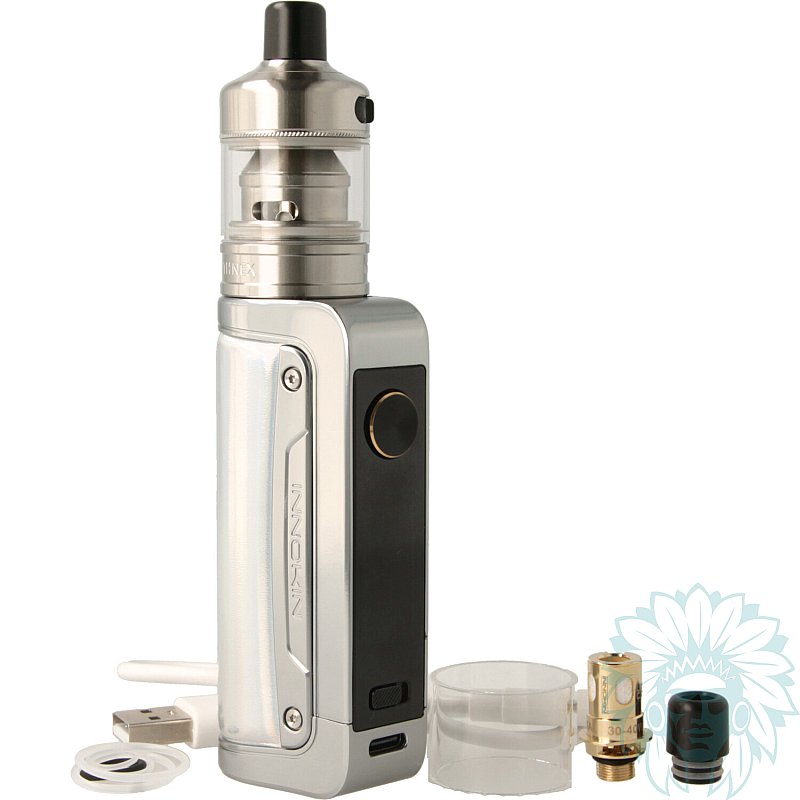

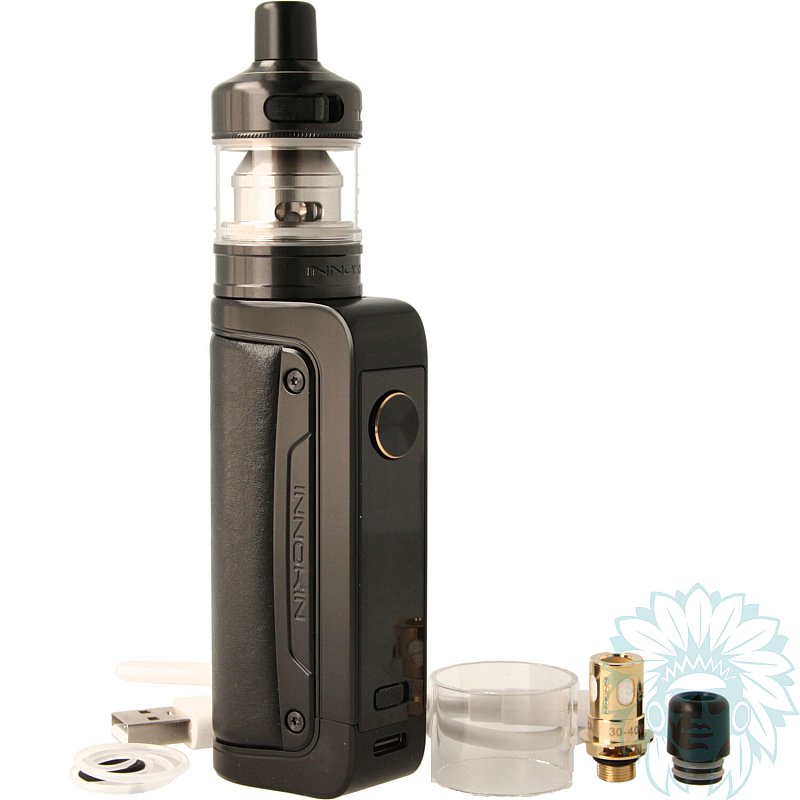

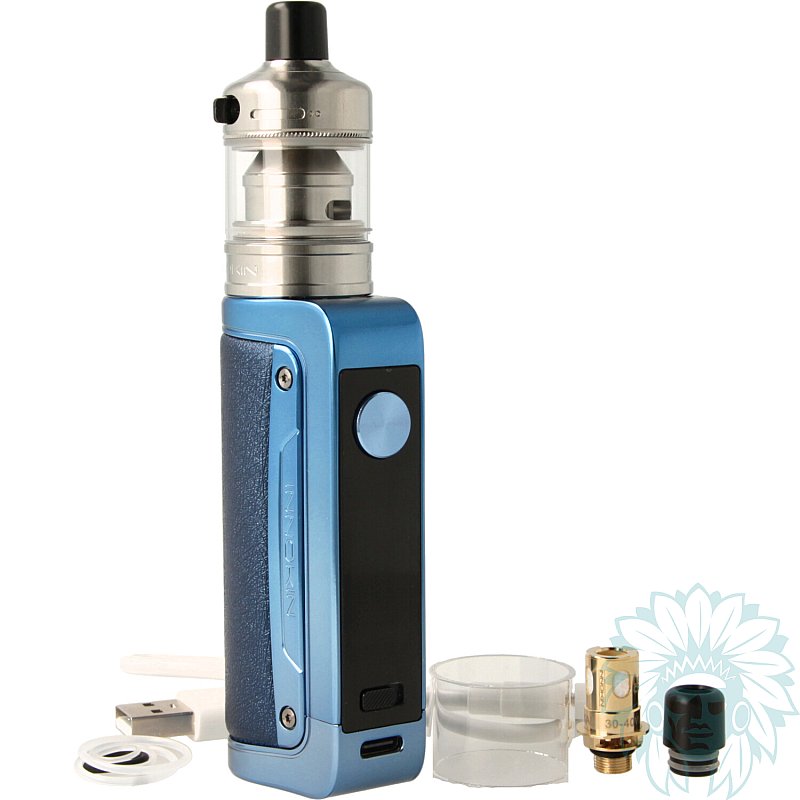

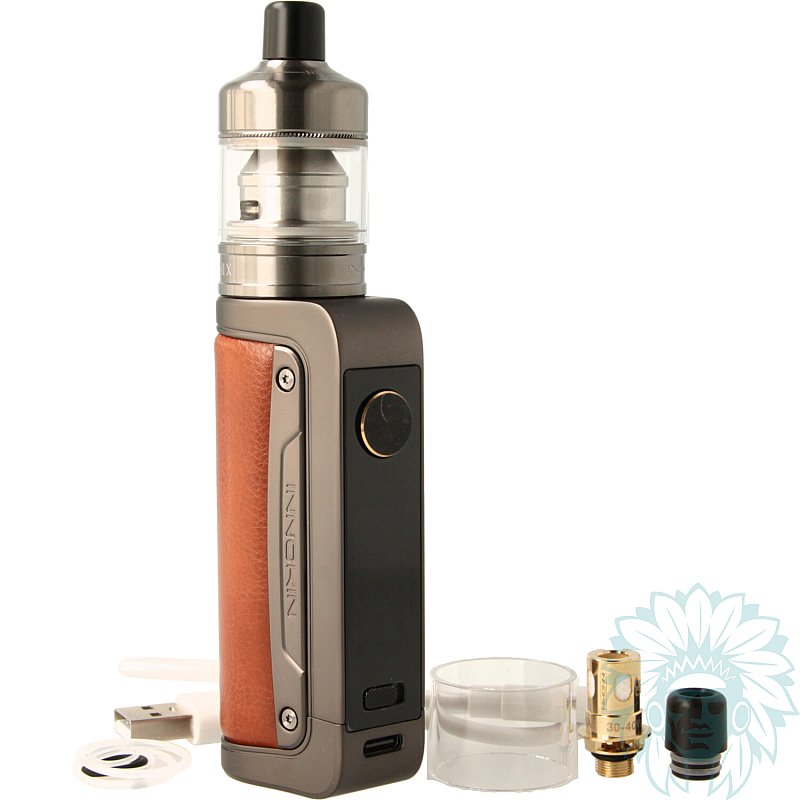

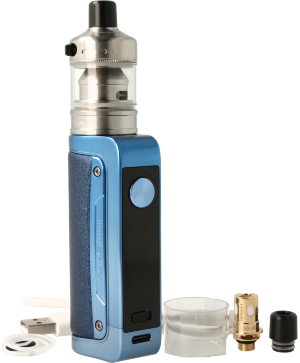

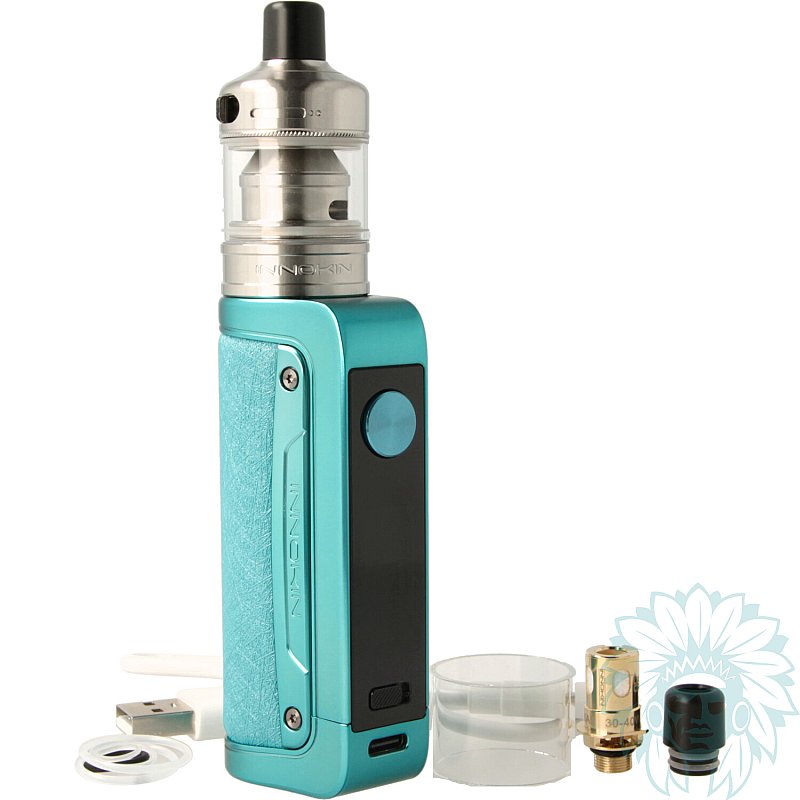

Innokin Coolfire Z80 Nex complete kit

Replacement Battery sold separately

Calumette's review: Z80 Nex kit is a real winner for beginners! Compact, self-contained and ultra-easy to use, it ticks all the boxes for a good start. But it doesn't stop there: more regular vapers will also be delighted by its versatility and potential for development. And what about the new Zenith Nex clearomizer? Zero leakage, greater power and even better sensations with the new Z coils... A winning combination for all vaper profiles!

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to try out several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Easy to use
• Ergonomic design
• Versatility
• Good flavour reproduction

Kit contents

• 1 Innokin Coolfire Z80 Nex box mod
• 1 Innokin Zenith Nex clearomizer
• 1 Innokin Z coil Nex 0.8 ohm (pre-installed)
• 1 Innokin Z coil Nex 0.3 ohm
• 1 MTL drip tip
• 1 RDL drip tip
• 1 replacement pyrex
• 1 O-rings kit
• 1 USB-C cable
• 1 user manual

Specifications

• Length: 13.5 cm
• Width: 4 cm
• Depth: 2.8 cm
• Weight: 156 g (without battery)
• Capacity: 5 ml
• 510 screw thread
• 510 removable plastic drip tip
• Zinc alloy, steel and pyrex
• Compatible with Innokin Z Coils
• Power rating: 80 W
• Max charge current: 1.7 A
• Capacity: one 18650 battery (not supplied)
• Compatible battery: discharge power ≥ 25A
• Coils supplied: Innokin Z Coil Nex 0.3 ohm and 0.8 ohm
• Power consumption: 30 to 40 W for the 0.3 ohm coil and 15 to 18 W for the 0.8 ohm coil
• Type of inhalation: Indirect to direct
• Type of vapor: tight to airy
• vapor: Cold to hot
• Percentage of VG in liquid for optimum use: ≥ 50% Vegetable Glycerin
• Level : Beginner to regular

Use

- Locking/unlocking:
Slide the slider at the bottom of the screen to the right or left to unlock and lock your box mod.

- Switching on/off :
Make 3 consecutive presses on the switch.

- Recharging your Pod :
Plug the cable into your computer's USB port or wall socket. Plug in your Innokin Coolfire Z80 Nex box. Your battery charge status will be displayed on your screen.

- Power setting :
Press and hold the "+" and "-" buttons on the side of the box mod, the Watts value will flash to adjust the power. Confirm by pressing the trigger once.

- Accessing your Pod menu :
Switch on your box mod. Press the "-" button and the switch button for 2 seconds to access the menu. Move around using the "+" and "-" buttons and confirm using the trigger.

- Filling your clearomizer :
Turn the top cap ring. Lift the Teflon cover on the side of the Zenith Nex and fill the cartridge. Close the cover, and turn the ring again to conceal the filler cover.

- Changing the coil :
Position your clearomizer upside down. Unscrew the base of the clearomizer, pull out the coil and insert a new one.

- Adjusting the Airflow :
Turn the adjustment ring at the top of the clearomizer to the right or left depending on the type of vaping you want.

Advice

- We suggest you put a few drops of e-liquid on the cotton part of your Innokin Z coil. This will prevent a burnt taste.

- Make sure you respect the maximum usage ranges indicated on your coils.

For more information, please refer to the instructions included in your Innokin Coolfire Z80 Nex kit.
