Dotmod DotStick AIO kit

Dotmod DotStick AIO kit

Dotmod offers a refined kit worthy of Swiss watchmaking. The kit is meticulous in every detail, and the gold finish makes this model a real gem. This version comes with a built-in 1450 mAh battery that can be recharged via a USB type C cable.

Dotmod Dotstick kit

A charging socket is located under the battery for quick charging of your device. Depending on the coil used, the device can deliver up to 25W.

USB-C socket under the battery

Note the engraving in the form of a punch on the anodised aluminium.

DotMod engraving detail

This electronic mod guarantees safe vaping. The box can be used in Bypass mode or with three power levels adapted to the value of the coil. To clearly identify which mode is active, the "power" button, which has a luminous LED, changes colour:

• white: Bypass mode
• red: Soft mode
• blue: Medium mode
• green: Strong mode

Dotmod has also included a LED to indicate the charge level of your battery.

The Temperature Control function detects insufficient liquid in your tank. This prevents any risk of "dry burn". This function is only available with the strict use of Dotmod Dotstick SS316 coils.

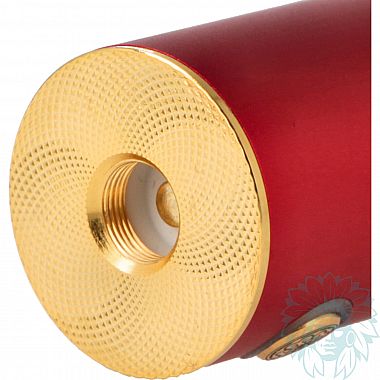

The other new feature worth mentioning is the ingenious Pin 510 anti-grip. If you tighten it too much, it prevents the base of the clearomizer from getting stuck on the mod. An extremely judicious technical innovation that makes Dotmod a partner at the cutting edge of technological advances in the world of vape.

DotStick battery and clearomizers

The Dotstick clearomizer not only looks great, it's particularly ingenious. With a capacity of 2 ml, the tank is made from heat-resistant PCTG.

Ball lock system and right-hand filling port

Once you've removed the base of the clearomizer by turning it a quarter turn, you'll see a funnel-shaped filler opening at the top of the clearomizer. All you have to do is press the pipette from your bottle onto the filling system to introduce the liquid into the tank. The liquid reaches its target precisely, with no risk of external dirt.

The base of the clearomizer is mounted on spring-loaded balls so you can unscrew or screw it back on with a quarter-turn. There's no risk of unscrewing the base of the clearomizer on the mod by mistake, as you need to apply pressure and turn the tank to remove it.

The draw is fairly indirect, although the 0.4 ohm Dotstick coil allows for a restrictive direct draw.
Two drip tips are provided:

• a round one for a more airy draw.
• an oval, for a very tight draw.

The coils produce generous vapor, thanks to their mesh technology and the use of high-quality cotton.

• Dotmod DotStick 0.4 ohm coil: direct inhalation and airy draw for use between 20 and 30 W.
• Dotmod DotStick 0.7 ohm coil: indirect inhalation and tight draw for use between 14 and 20 W

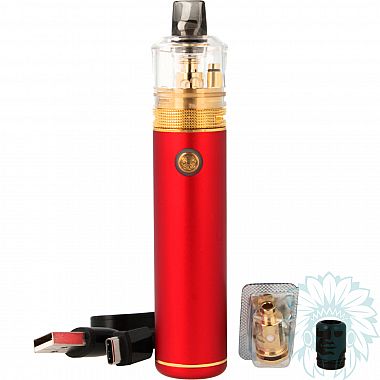

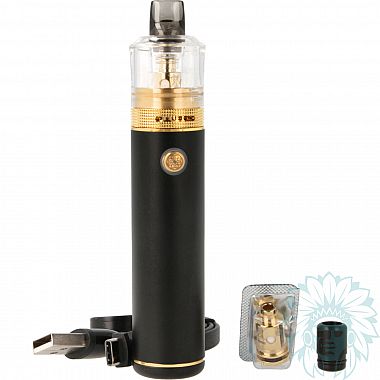

Dotmod DotStick complete kit

Calumette's review: Dotmod is undoubtedly the benchmark brand in terms of quality and technical innovation. This version with built-in battery is perfect for beginners who want to start out with quality equipment. Dotmod makes quality available to everyone.

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Exemplary finish
• Restrictive indirect or direct draw
• Integrated 1450 mAh battery
• Innovative refill system

Kit contents

• 1 Dotmod DotStick AIO kit
• 1 Dotstick 0.7 ohm coil
• 1 Dotstick 0.4 ohm coil
• 1 Type C cable
• 1 round replacement drip tip
• 1 O-rings kit
• 1 user manual

Specifications

• Length: 11.2 cm
• Diameter: 2.2 cm
• Weight : 100 g
• Capacity: 2 ml
• 510 anti-grip screw thread
• 510 plastic drip tip type
• PCTG tank
• Compatible with Dotmod DotStick coils
• Power: 25 W
• Max charge current: 2 A
• Capacity: 2500 mAh
• Coils supplied: one DotMod DotStick 0.4 ohm coil and one DotMod DotStick 1 ohm coil
• Power usage of the coils: DotMod DotStick 0.4 ohm from 20 to 30 W and DotMod DotStick 0.7 ohm from 14 to 20 W
• Inhalation type: indirect to restrictive direct
• vapor type: tight
• vapor: cold to warm
• Percentage of VG in the liquid for optimum use: ≤ 70% Vegetable Glycerin
• Level: beginner to regular

Use

- Charging your Dotmod DotStick AIO box:
Plug your USB-C cable into the socket on the underside of the battery.

- Changing the operating mode:
Press the "power" button three times to make your selection.

• White LED: bypass mode
• Red LED: soft mode
• Blue LED: medium mode
• Red LED: strong mode

- Checking the charge:
The charge level of your battery is indicated by an indicator light:

• Green LED: charge between 61% and 100%
• Blue LED: charge between 21% and 60%.
• Red LED: charge between 1% and 20%.

- Changing the coil:
Unscrew the base of your clearomizer by a quarter turn, while simultaneously applying pressure to the tank. Pull out the coil and replace it. Be careful, the tank must not be full.

- Filling your tank:
Unscrew the base of your clearomizer by a quarter-turn, applying pressure to the tank at the same time. Insert the pipette from your bottle into the funnel-shaped hole and pour in the liquid.

- Vaping:
Press the switch 5 times in succession to switch on or off. Press the switch to vape.

Advice

- We suggest you put a few drops of e-liquid on the cotton part of your Dotstick coil. This will prevent a burnt taste.
