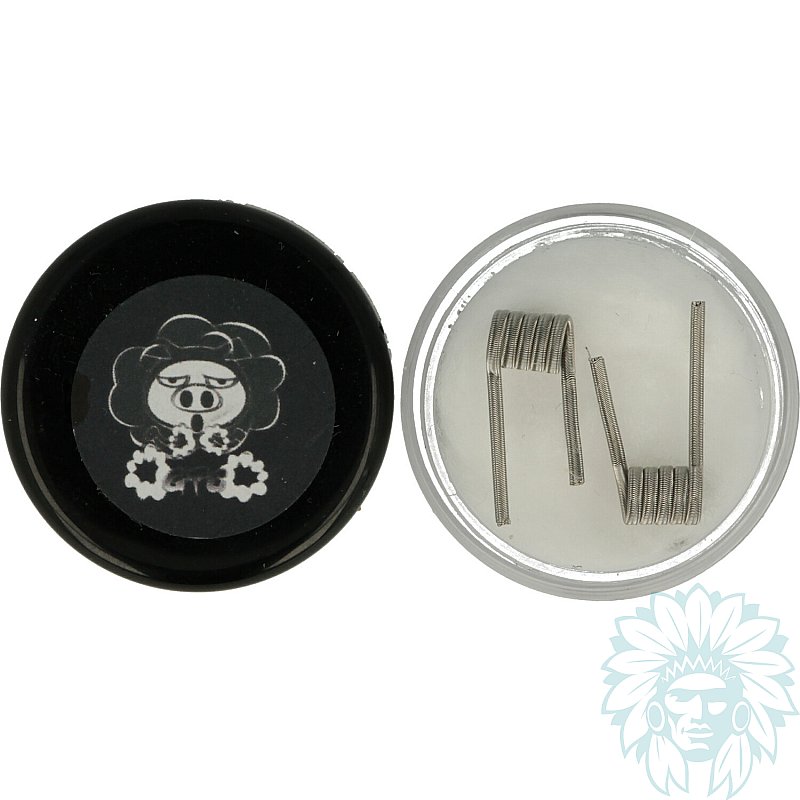

GPC Coils - Alien coils (2 pack)

GPC Coils - Alien coils (2 pack)

GPC Coils come straight from Alsace. Handcrafted by Léo, a coil enthusiast, they are of superb quality and can be easily fitted to your mounting plates. Entirely designed and handmade in France, the rigour of the design can be felt when you vape, allowing you to choose the best type of coil for your needs. The craftsman advises against cleaning the coil with a metal brush, preferring softer brushes or a cloth. Metal can significantly alter your coil and reduce its lifespan.

Alien GPC Coils are available in 4 values (the resistance is expressed in double-coil assembly):

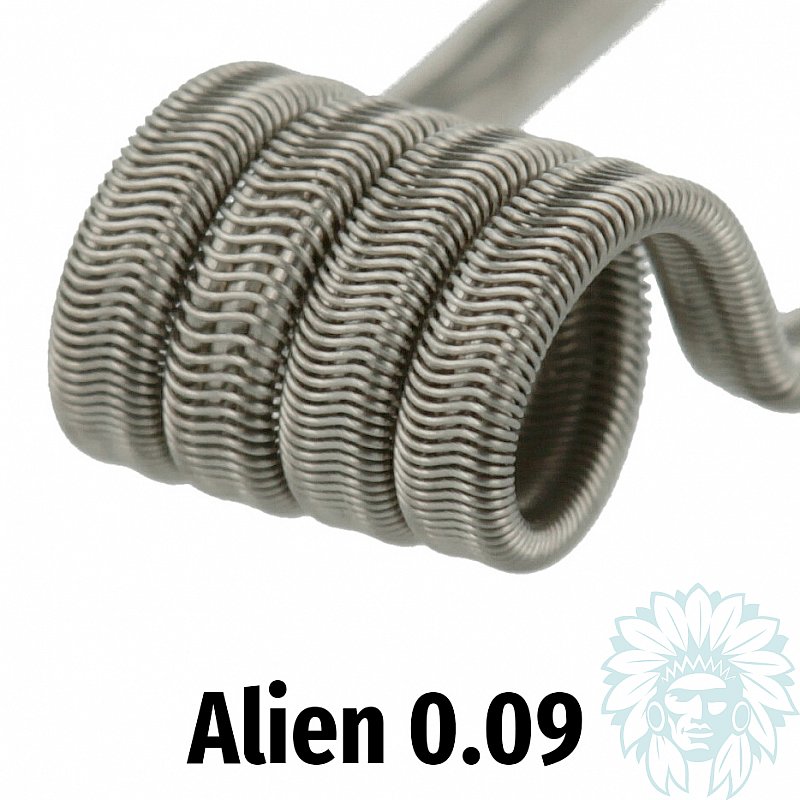

• Alien Ni80 0.09 ohm (0.18 ohm single coil):
  For high vapor production, for Cloud Chasing lovers. These coils are at their best with gourmand liquids for a warm, tasty vapor.

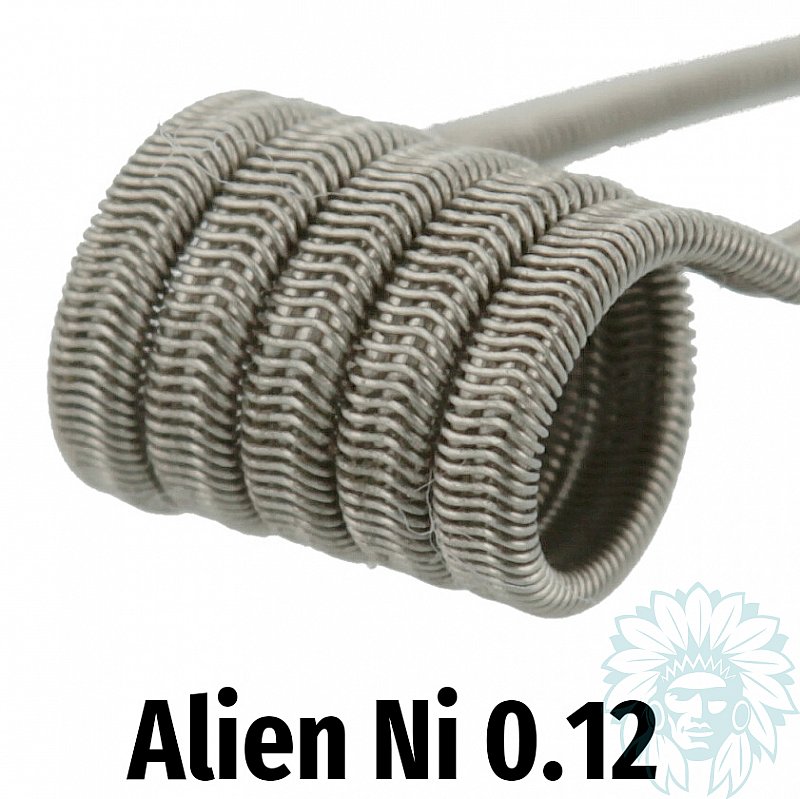

• Alien Ni90 0.12 ohm (0.24 ohm single coil):
  Highly responsive coils that reproduce the sweetness of the flavours. They are perfect for gourmand or fruity liquids, but less suitable for fresh liquids.

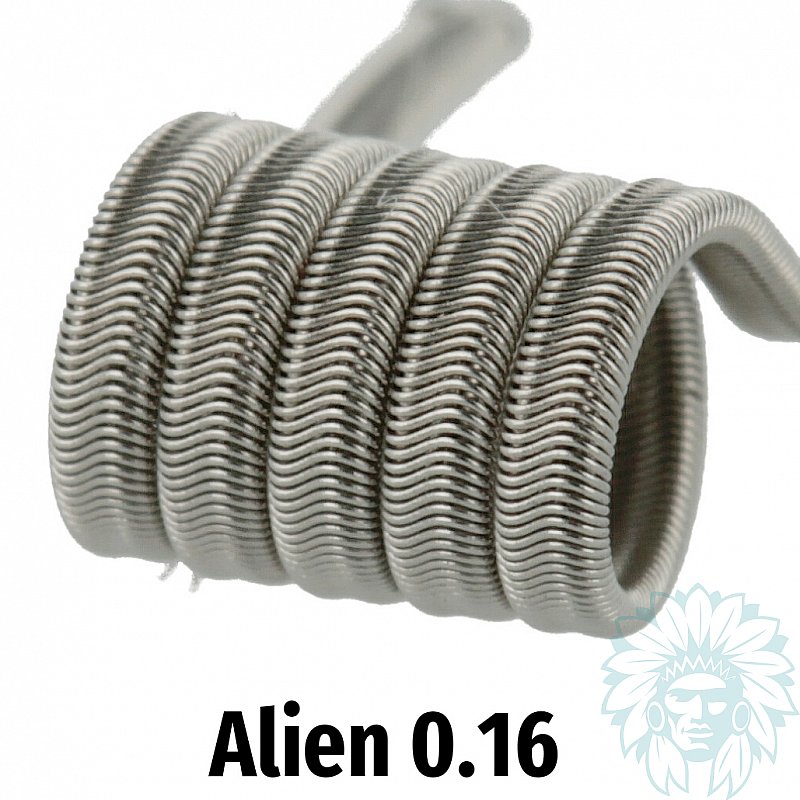

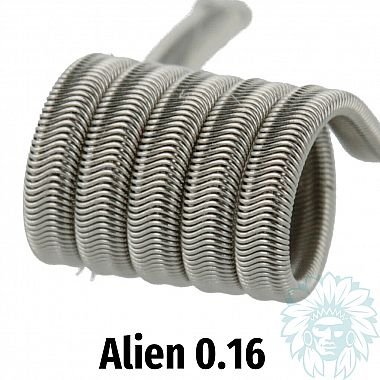

• Alien Ni80 0.16 ohm (0.32 ohm single coil):
  The most versatile coils. They are equally at home with gourmand or fruity liquids, on a mechanical or electronic box. This is the benchmark Alien coil!

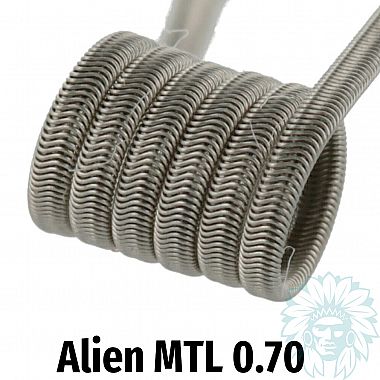

• Alien Ni80 0.70 ohm (single coil assembly):
  Coils for MTL use on atomizers or drippers with restricted vapor. With excellent responsiveness, their range of use starts at between 13 W and 15 W, for excellent flavour reproduction with gourmand or fruity flavours.

Advantages

• Quality craftsmanship
• Long service life
• Sold in pairs.

Specifications

Alien Ni80 0.09 ohm :

• Length: 4 turns
• Inside diameter: 3.0 mm
• Material: Ni80

Alien Ni90 0.12 ohm :

• Length: 5 turns
• Inside diameter: 3.0 mm
• Material: Ni90

Alien Ni80 0.16 ohm :

• Length: 5 turns
• Inside diameter: 3.0 mm
• Material: Ni80

Alien Ni80 0.70 ohm :

• Length: 6 turns
• Inside diameter: 2.5 mm
• Material: Ni80

User guide

You vape and want to get started with rebuildable atomisers by creating your own assemblies, your own coils, upgrading or replacing certain parts of your e-cig. Before you get started, here's some useful information:

• Resistive and non-resistive wires :

- Resistive wires: wires that conduct heat under the action of electrical energy (battery). Once heated, the wire transforms the e-liquid into a vapor.

- Non-resistive wires: this wire does not conduct heat, but it does conduct the electrical current to the resistive wire.

• Properties of the different alloys :

- Khanthal is an iron-chromium-aluminium alloy. This material can withstand high temperatures. It is an excellent conductor of heat.

- Stainless steel (SS316) is malleable and not very susceptible to corrosion.

- Nichrome (Ni) is an alloy of chromium and nickel that withstands high temperatures. It has a high heat resistivity.

- Titanium (Ti) is a lightweight material that resists corrosion and high temperatures. It protects the internal components from a sudden rise in temperature.

Depending on the alloy used, the coil will be more or less resistive. For example, for the same diameter, Nichrome will be more resistive than Khantal. That's why it's important to adapt the wire to the equipment you're using. If you have a box with temperature control (temperature between 100° and 300°), you will need to use Titanium (Ti) or Ni200 wire, which can withstand these temperatures.

• Diameters :

The ohm value of your coil depends on the diameter of the resistive wire used. The thicker the diameter, the lower the resistance in ohms (low resistance). In other words, the thicker your coil wire (large diameter), the faster and stronger it heats up. More hit, more vapor.

• Essential equipment:

- Cutting pliers: to cut your different wires precisely.
- a Kuro concept kit or steel rod for microcoil to wrap the wire around and create coils perfectly equal to the selected diameter.
- coil wire adapted to your equipment.
- a digital ohmmeter to check the value of the coil resistance and avoid short circuits.
- Ceramic-head pliers for handling the coils.
- Organic cotton.

Advice

- Resistive wire should only be used by experts. Once you've built your coil, be sure to check the resistance value using an Ohm meter to avoid any risk of short circuits.
