Aspire Boxxer Kit

Aspire presents the Boxxer kit, a sturdy all-metal box mod combined with the Aspire AF Tank clearomizer, which stands out for its versatility. The box is made entirely from cast alloy.

Boxxer box mod front panel

The material used and its weight of 165 g (including clearomizer and replacement battery) make it very comfortable to hold. The buttons are positioned to fit all hand sizes.

The replacement battery is housed under the removable magnetic cover. You can install an 18650 replacement battery of your choice. Ventilation holes are located on each side of the cover for added safety in the event of an incident with the replacement battery. The Boxxer box mod can deliver up to 80W of power.

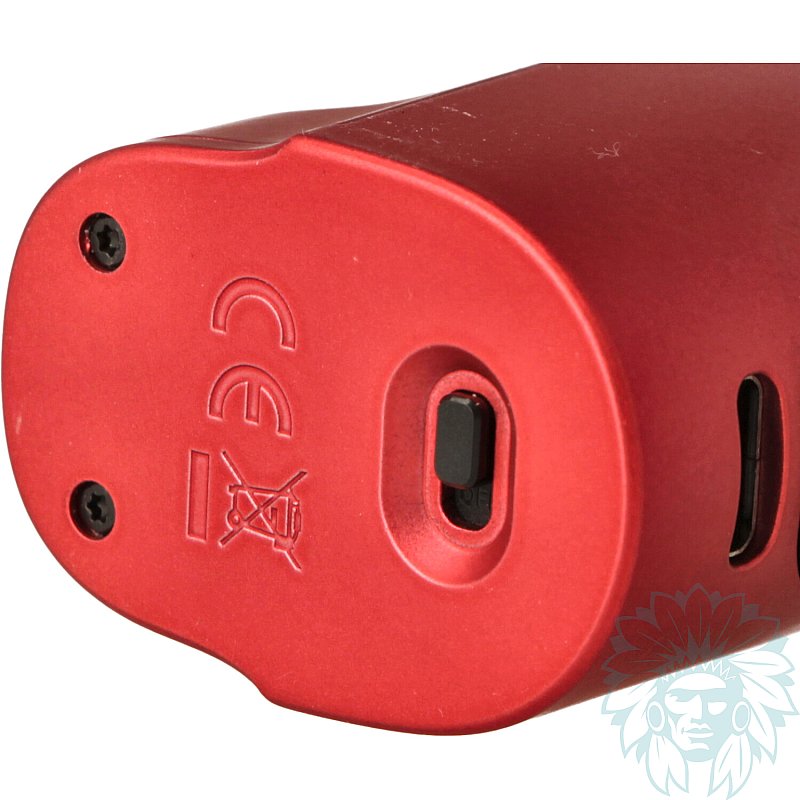

On/Off button under the box

You can occasionally recharge your replacement battery directly on the box, thanks to a USB C charging socket on the front of the box.

Large 0.96" colour screen

There's a 0.96" TFT screen and 3 control buttons, including a mode button that makes it easy to switch from one mode to another. The chipset is common to other recent Aspire boxes.

You have access to 5 different operating modes:

• Variable Wattage
• Variable voltage
• Bypass
• Temperature control: SS, Ni, TI
• CPS: adjustable power curve

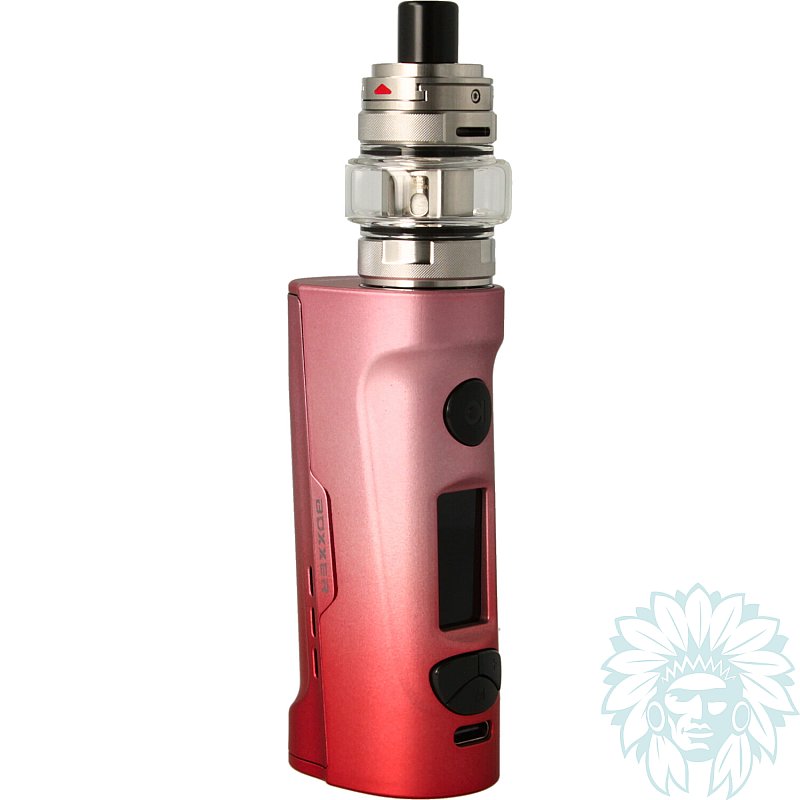

Box mod Boxxer and AF Tank clearomizer

The Boxxer is paired with the Aspire AF Tank clearomizer, which offers a host of advantages, including a reduced size, a 22.5 mm diameter and a large 4 ml capacity.

Filling port at the top of the clearomizer

Everything happens at the top of the clearomizer. The sliding top cap gives access to a large filling slot, which is handy for pipettes that are wider than those on standard e-liquids bottles (2 mm). The airflow is positioned under the top cap for an indirect to restrictive direct draw.Aspire AF 0.4 ohm coil

As its name suggests, the AF Tank works with Aspire AF coils available in 1 ohm, 0.6 ohm and 0.4 ohm.

Power consumption :

• Aspire AF 0.4 ohm coil to be used in a range between 20 W and 28 W for a relatively powerful, restrictive direct draw.

Aspire Boxxer complete kit

Calumette's review: A high-performance kit perfect for everyday use that's just as suitable for beginner vapers as it is for more regular vapers.

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Easy to use
• Modern design
• Indirect or restrictive direct draw

Kit contents

• 1 Aspire Boxxer box mod
• 1 Aspire AF Tank clearomizer
• 1 coil Aspire AF 0.4 ohm
• 1 replacement O-rings kit
• 1 USB Type C cable
• 1 French manual

Specifications

• Length: 12.9 cm
• Width: 3.9 cm
• Depth: 2.8 cm
• Weight: 125 g (without replacement battery)
• Capacity: 4 ml
• 510 screw thread
• 510 removable plastic drip tip
• Zinc alloy, steel and pyrex
• Compatible with Aspire AF coils
• Power: 80 W
• Capacity: one 18650 battery
• Max charge current: 2A
• Compatible battery: discharge power ≥ 25A
• Coils supplied: one Aspire AF 0.4 ohm coil.
• Power usage: from 20 to 28 W for the 0.4 ohm coil.
• Type of inhalation: indirect to restrictive direct
• Type of vapor: tight to airy
• vapor: cold to warm
• Percentage of VG in liquid for optimum use: ≥ 50% Vegetable Glycerin
• Level: regular

Use

- Charging your box:
Plug the USB cable into the port on your Aspire Boxxer box mod (USB-C socket), after inserting an 18650 battery, in the recommended direction. While your box is charging, you can continue to vape. The box has a charge indicator.

- Switching on/off :
Slide the button on the underside of the front box to turn your box on or off.

- Locking:
Press the "+" and "-" buttons simultaneously to lock them. To lock the entire box, press the "power" button 3 times in less than a second.

- Changing modes:
Press the "M" button to change the mode of your box.

- Filling your clearomizer :
Press the arrow on the top cap of your clearomizer. Fill it up and close it to vape.

- Changing the coil :
Unscrew the base of the clearomizer, pull out the coil and fit a new one, taking care to fit the coil into the notches provided. Refit the airflow ring.

- Adjusting the airflow :
Rotate the ring to open the airflow slots. By modulating the airflow, you can experiment with an airy draw or a tighter draw.

Advice

To preserve the life of your replacement batteries and optimise charging efficiency, we recommend using an external battery charger.

For more information, please refer to the French instructions included in your Aspire Boxxer kit.
