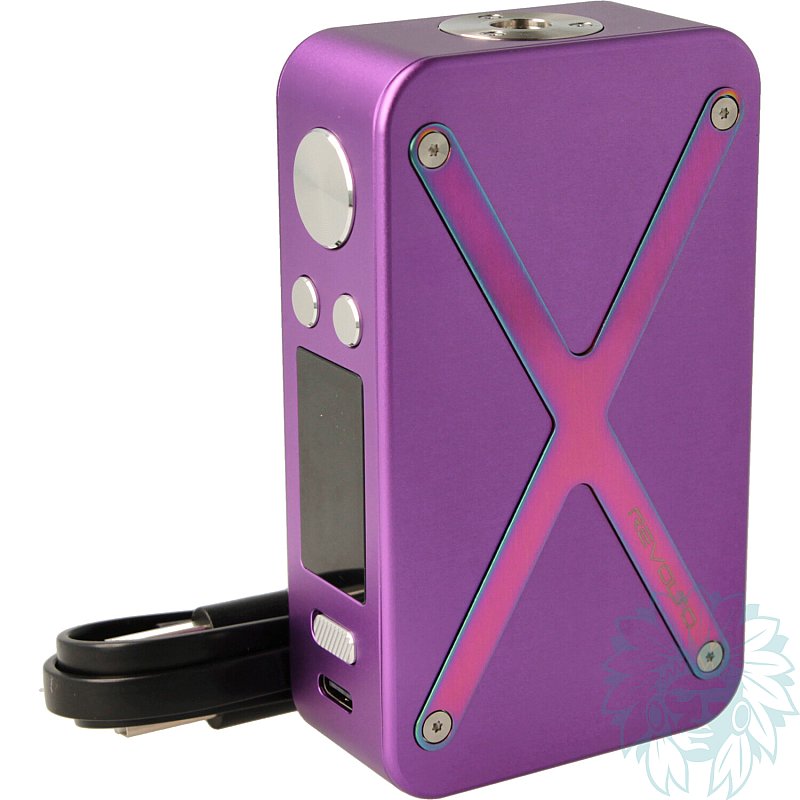

With the Revolto box, Aspire presents a model specially designed for cloud chasing. It has a neat design and is very comfortable to hold. The Revolto box mod has 2 removable covers, one of which holds 2 18650 batteries (not supplied).

Side covers with access to the replacement batteries

The box has a charging socket so you can occasionally charge your batteries to 2A.

510 connection for clearomizers up to 26 mm in diameter.

The Revolto is rated for a maximum power of 220 W. It powers large clearomizers (up to 26 mm in diameter) that can operate at high power levels.

Large 0.96" colour display.

The front panel features a 0.96" screen. The chipset is common to other recent Aspire boxes. Intuitive, it allows you to select 5 different operating modes:

• Variable Wattage
• Variable voltage
• Bypass
• Temperature control: SS, Ni, TI
• CPS: adjustable power curve.

Aspire Revolto complete box mod kit

18650 replacement battery sold separately.

Calumette's review: A cool design that will compete directly with the heavyweights in this sector such as Vaporesso, Geek Vape and Voopoo ....but beyond the design, this is above all a model designed for cloud chasing once you've chosen your clearomizer.

Advantages

• Large colour screen
• Ease of use
• Alloy frame

Kit contents

• 1 Aspire Revolto box mod
• 1 USB type-C cable
• 1 French manual

Specifications

• Length: 9 cm
• Width: 5.3 cm
• Depth: 2.6 cm
• Weight: 150 g
• 510 screw thread
• Power: 220 W
• Capacity: 2 18650 batteries
• Max charge current: 2 A
• Max discharge current: ≥ 25 A
• Level: regular

Use

- Charging your box:
Connect the USB cable to the port on your box mod Aspire Revolto (USB-C socket), after inserting 2 18650 batteries, in the recommended direction. While your box is charging, you can continue to vape. The box has a charge indicator.

- Switching your box on and off:
Slide the button on the front panel to switch your Revolto box mod on or off.

- Locking your box :
Press the "+" and "-" buttons simultaneously to lock them. To lock the whole box, press the "power" button 3 times in less than a second.

- Changing modes:
Press the "+" and "Power" buttons simultaneously to change the mode of your box.

Advice

To preserve the life of your replacement batteries and optimise charging efficiency, we recommend using an external battery charger.
