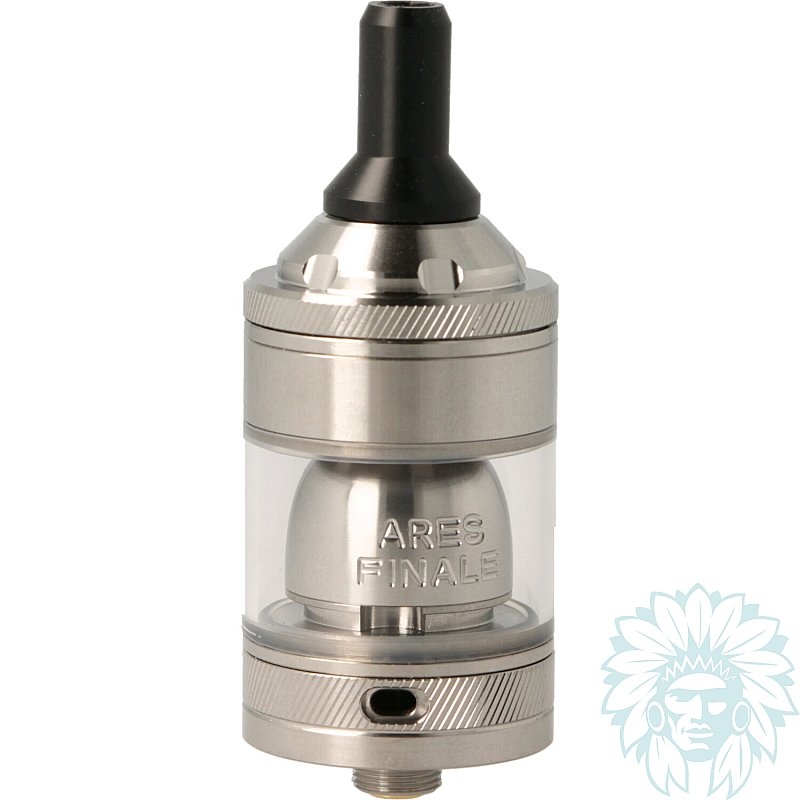

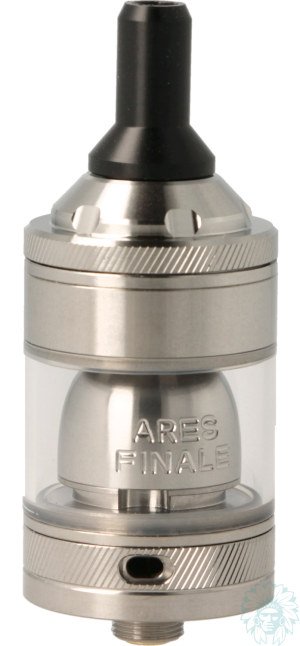

Innokin Ares Finale atomizer

Following on from the iconic Ares 1 and 2 atomisers, Innokin now offers an improved version: the Ares Finale. While the shape and 24 mm diameter of this version are similar to the previous models, the finishes are much more sophisticated.

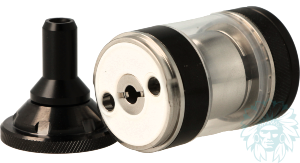

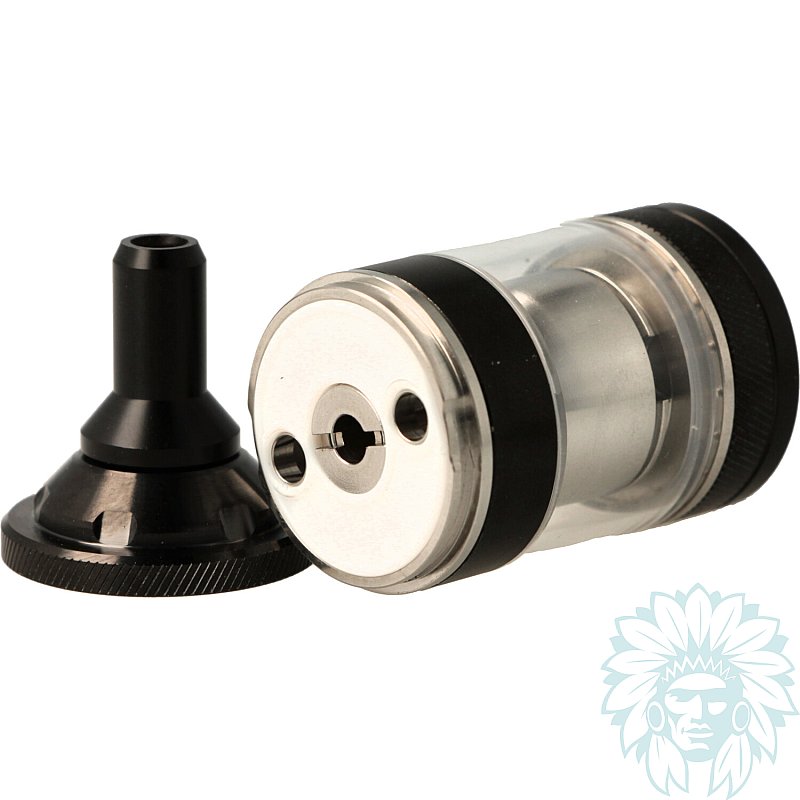

Quarter-turn removable top cap with access to filling ports

At the top, the sliding top cap is replaced by a quarter-turn, which greatly reduces the risk of leakage in the event of accidental opening. Above, a long, thin drip tip immediately sets the tempo, and vape is designed to be tightened in MTL. A second, shorter oval drip tip (included in the kit) produces a cooler vapor.

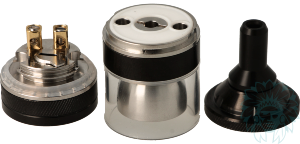

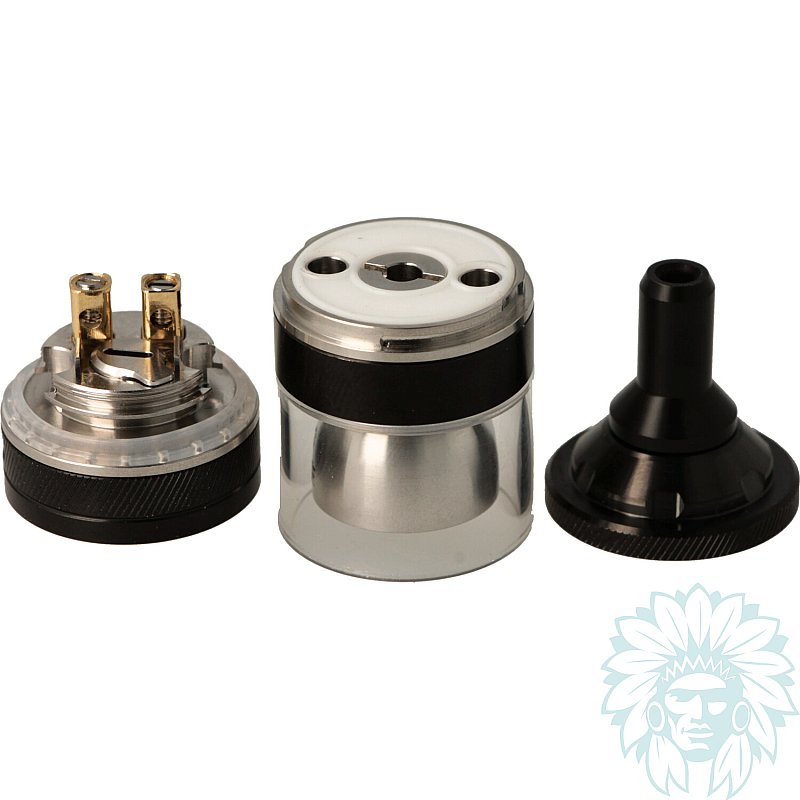

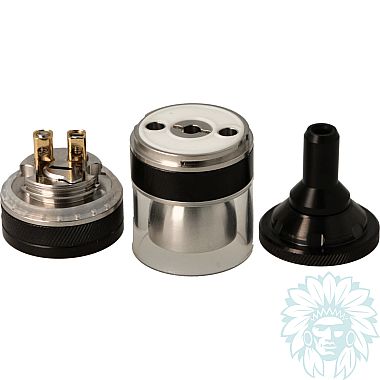

Ares Finale atomizer disassembled

The tank glass holds up to 4.5 ml. The atomiser bell can be completely dismantled using the tool supplied. This makes it easy to clean the atomizer completely. The bell is perfectly machined and has twisted grooves that help to eliminate the effect of condensation inside.

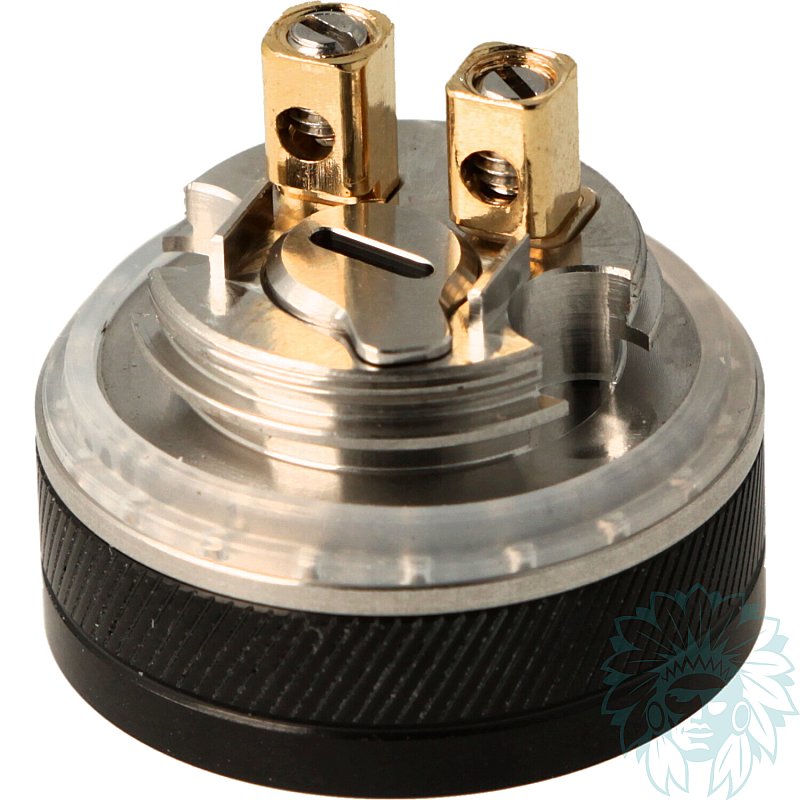

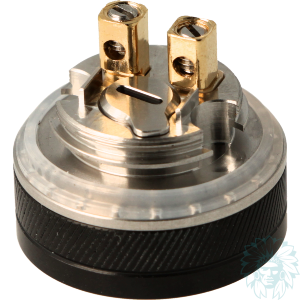

Mounting plate with the second airflow placed under the coil

On the base is the mounting plate for a single coil. You can see straight away that particular attention has been paid to the finish. The 2 large clamping screws have been replaced by 2 real slots for clamping your coil. The coil wires are securely fixed to a wide plate, making assembly comfortable and pleasant.

The atomizer features 2 airflows. The first features a classic airflow ring with a choice of 7 positions, while the second is positioned directly under the coil. The latter can be adjusted using the tool supplied in the kit. Precise and efficient, you can be sure that it won't go out of adjustment when you vape.

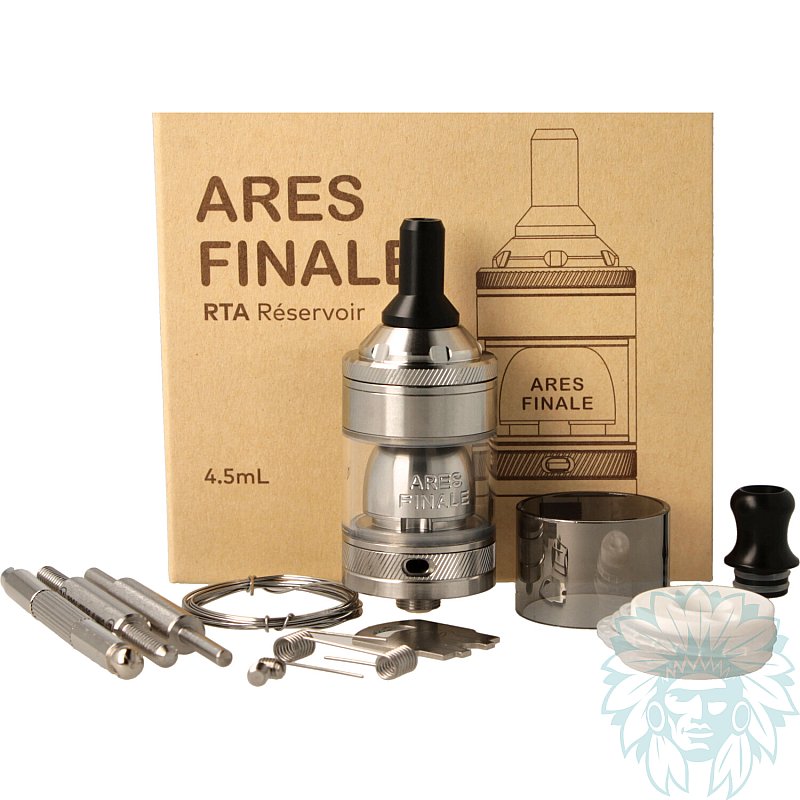

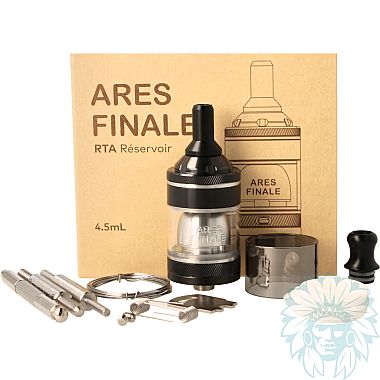

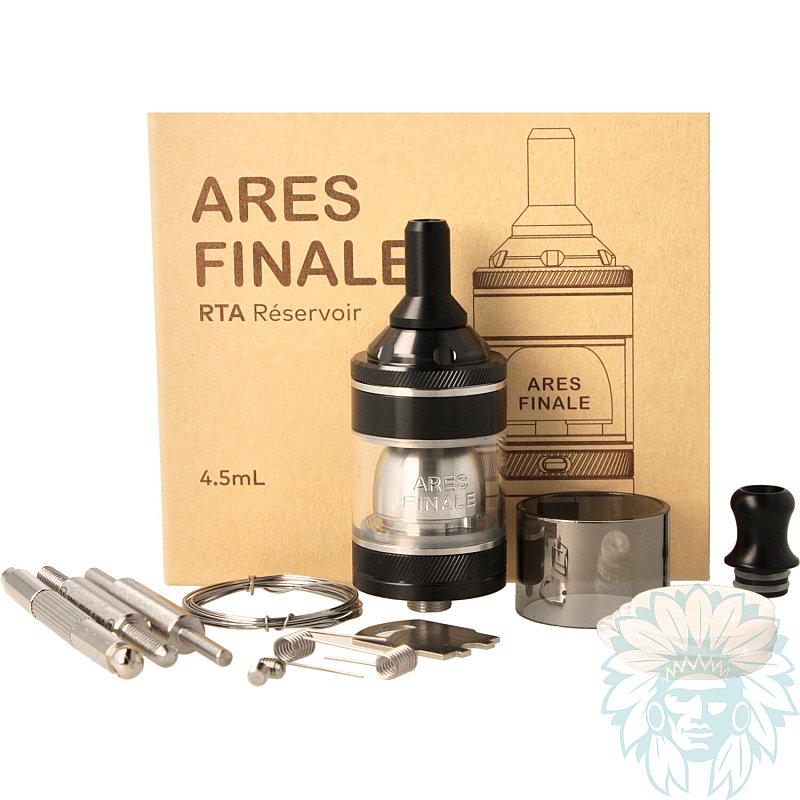

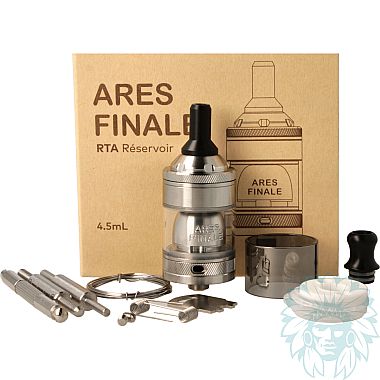

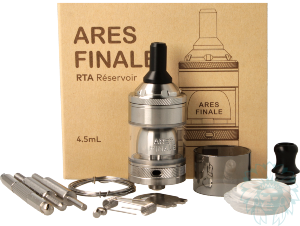

Innokin Ares Finale complete atomizer kit

Calumette's review: An excellent MTL atomizer with a wide plate for comfortable coil mounting. The flavour reproduction is very realistic and the vape very qualitative.

E-liquid not supplied: Complete your purchase with e-liquid.
For a first purchase, we recommend testing several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Top-fill
• 4.5 ml capacity
• Adjustable dual air flow

Kit contents

• 1 Innokin Ares Finale RTA atomizer
• 2 Kanthal 1 ohm coils
• 1 m Kanthal 26 ga wire
• 1 organic cotton pad
• 1 set of replacement O-rings
• 1 replacement smoked pyrex
• 1 replacement drip tip
• 2 replacement screws
• 1 2-in-1 screwdriver
• 1 disassembly and adjustment tool
• 1 quick start guide

Specifications

• Length: 5.7 cm
• Diameter: 2.4 cm
• Weight : 56 g
• Capacity : 4.5 ml
• 510 screw thread
• 510 drip tip
• Tank type : Pyrex
• Assembly: single coil
• Compatible with rebuildable coils
• Inhalation type: indirect
• vapor type: tight
• vapor: cold to warm
• Percentage of VG in liquid for optimum use: ≤ 90% Vegetable Glycerin
• Level: expert

Use

- Place your coils:

Unscrew the base of the atomizer to access the base of the plate. Unscrew the plate screws using the screwdriver supplied.

Place your coil on the plate and tighten the screws. Carefully cut a piece of wick about 0.5 cm long and roll it so that it is placed in the centre of the coil.

Redirect the wicks into the oblong holes on each side and trim the excess so that the cotton does not protrude from the plate. Trim any coil threads that stick out with the tray. Soak your cotton well before closing your clearomizer. Now all you have to do is fill it up and vape!

We recommend that you check the resistance in ohms of each of your coils using an ohm meter. If the resistance is too low or short-circuited, your equipment can be seriously damaged.

Advice

- We suggest you try several different wires and cottons to find your ideal vape. Bear in mind that the thinner the wire, the higher the resistance and vice versa.
