Vaporesso Gen PT60 kit

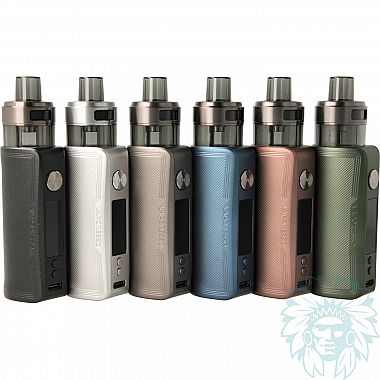

Vaporesso Gen PT60 Kit

Vaporesso GEN PT60

The Vaporesso GEN PT 60 kit consists of a battery and an Xtank cartridge, all in pocket format for powerful direct-inhalation vaping. The vapor is dense and the flavours well reproduced.

Gen PT 60 front panel

Its small size makes it easy to hold, and access to the various buttons poses no problem whatever the shape of your hand.

USB C charging socket under the control knobs

The kit is light, and despite its featherweight, the 2500 mah/60w box delivers excellent battery life. As with all new-generation equipment, charging is done quickly via the USB type C socket on the front of the box.

Large 0.91" monochrome screen

On the front, a perfectly legible 0.91" monochrome control screen lets you choose between 3 operating modes: Variable Wattage, Variable Voltage and Smart WV.

Cartridge slot and connection studs

Smart WV is an intelligent mode that adjusts power according to the coil in the cartridge. The setting is optimal. By limiting power, dry hit is avoided.

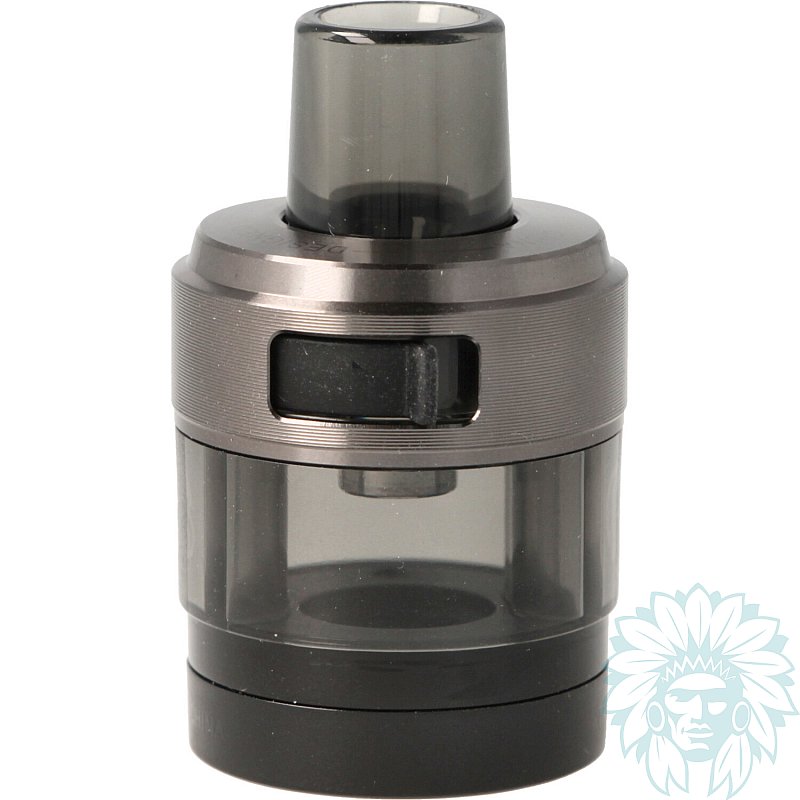

Vaporesso Xtank cartridge

The Vaporesso Xtank cartridge is designed for direct to restrictive direct vaping. It is suitable for light nicotine strengths.

Cartridge filler cap

The cartridge is filled and the airflow adjusted from the top: this is the "double top" system. By unscrewing the ring, you can access a Teflon cover to fill the 4.5 ml of liquid.

Adjustable double-slot airflow

Once the ring is screwed back on, the lid is completely covered, preventing any risk of accidental opening. The airflow appears, and the fact that it is also located at the top of the cartridge adds an extra safety feature to prevent leaks when using a liquid that is a little too fluid.

Location of the coil under the cartridge

The coil is housed under the cartridge, and to our great delight it's the GTX coils that take its place inside. Widely used in the world of vaping, their wide range gives vapers the opportunity to adapt their vape to suit their draw.

Vaporesso GTX coils

2 GTX mesh coils are included in your kit:

• GTX mesh 0.2 ohm coil to be used in a range between 45 W and 60 W for a direct draw.
• GTX mesh 0.4 ohm coil to be used in a range between 26 W and 32 W for direct draw.

Vaporesso Gen PT 60 complete kit

Calumette's review: Lightweight and powerful, this kit has it all. It's perfect for regular smokers or people who want to take their vaping to the next level with ease, on a direct draw.

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Anti-leak system
• Double top system
• Lightweight
• Performance and autonomy
• 4.5 ml capacity

Kit contents

• 1 Vaporesso GEN PT 60 battery
• 1 Xtank cartridge
• 1 GTX mesh 0.2 ohm coil
• 1 GTX mesh 0.4 ohm coil
• 1 micro USB type C cable
• 1 French user manual

Specifications

• Length: 11.2 cm
• Width: 2.8 cm
• Depth: 3.3 cm
• Weight : 90 g
• Capacity: 4.5 ml
• Non-removable proprietary drip tip
• PCTG
• Compatible with Vaporesso GTX coils
• Power: 60 W
• Max charging current: 2 A
• 2500 mAh capacity
• Coils supplied: GTX mesh 0.2 ohm and GTX mesh 0.4 ohm
• Power usage: 60 W for the Vaporesso GTX mesh 0.2 ohm coil and 32 W for the Vaporesso GTX mesh 0.4 ohm coil
• Type of inhalation: direct
• Type of vapor: airy
• vapor: warm to hot
• Percentage of VG in liquid for optimum use: ≥ 50% Vegetable Glycerin
• Level: regular

Use

- Charging your Vaporesso Gen PT 60:
Plug the USB-C cable into your battery port (USB-C socket). You can also vape while charging your battery. Charge level indicated on the screen.

- On/Off :
Press the "swich" 5 times in succession.

- Accessing the settings:
Press the "+" and "-" buttons simultaneously to access the various settings. Simply press the "+" or "-" button to navigate through the menu. The selection is made using the power button.

- Locking your box:
To lock the power of your box, press the "power" button 3 times. A locked padlock will appear. Your box is locked. To unlock, repeat the same operation until an unlocked padlock appears.

- Fill your Xtank cartridge:
Unscrew the airflow ring to access the filler cap on your cartridge. Open the lid and fill your cartridge. Turn the airflow ring back to the airflow position.

- Changing the coil :
Pull on the cartridge to remove it from the battery and access the coil. Pull on the coil to remove it and fit a new one.

- Vaping:
After waiting 5 minutes you can vape by pressing the "power" button.

Advice

For more information, please refer to the French instructions included in your Vaporesso Gen PT60 kit.
