Eleaf Istick Pico Plus kit

Eleaf Istick Pico Plus kit

Eleaf Istick Pico Plus kit

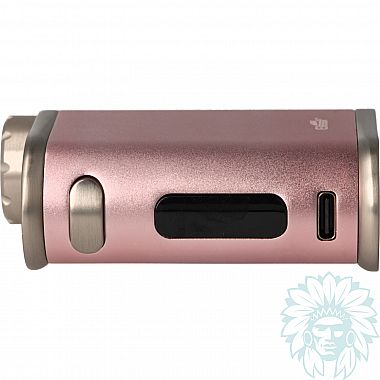

The Eleaf Istick Pico Plus kit takes the Istick Pico kit to the next level. Everything that made the Pico famous is retained, of course, but it now includes new features, the melo 4S and the latest-generation coils.

25 mm clearomizer holder

The design is in line with that of the Istick Pico, but the top and bottom plates have been enlarged to make it easier to accommodate clearomizers up to 25 mm in diameter. The alloy structure is lightweight and the compact design is perfectly ergonomic.

18650 battery door

The battery hatch on the top of the box houses an 18650 battery, providing a maximum output of 75W. Charging is via a USB-C socket for faster charging.

Clear, easy-to-read screen

The monochrome screen, identical to the previous version, is clear and easy to read. The chipset incorporates several operating modes: Variable Wattage, Bypass, Ni, Ti and SS Temperature Control, and TCR.

Dry-Proof system detecting a lack of liquid

A new feature has been added: 'dry-proof', which automatically stops vaping if you run out of liquid. This function is only available with Eleaf EC-A coils.

Eleaf Melo 4S clearomizer

The box mod is topped by the Melo 4S clearomizer, 25 mm in diameter and 4 ml in capacity.

Quarter-turn removable top cap

The sliding top cap gives way to a quarter-turn top cap that makes filling easier thanks to its large holes.

Melo 4S 510 drip tip

The airflow is simple but more rigid, which prevents unwanted adjustment.

Eleaf EC-A coil

The kit comes with two EC-A AST technology coils (mesh in SS316L), which enable you to use the "dry-proof" function that puts a definitive end to dry hits.

Range of use of Eleaf EC-A coils:

• EC-A 0.30 ohm coil for a range of use between 30 and 50 W for direct draw.
• EC-A 0.50 ohm coil for a range of use between 20 and 40 W for direct draw.

Eleaf Istick Pico Plus complete kit

Battery sold separately

Calumette's review : An efficient kit, with a sleek design that's perfect for new vapers in direct vape. A no-fuss kit.

Advantages

• Compact
• Liquid quantity detection
• 4 ml capacity
• Easy to use
• Ergonomic

Kit contents

• 1 box mod Pico Plus
• 1 Eleaf Melo 4S clearomizer
• 1 Eleaf EC-A 0.5 ohm coil
• 1 Eleaf EC-A 0.3 ohm coil
• 1 replacement pyrex
• 1 USB-C cable
• 1 clearomizer removal tool
• 1 French manual

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Specifications

• Length: 11.6 cm
• Width: 2.5 cm
• Depth: 4.7 cm
• Weight: 150 g without replacement battery
• Capacity: 4 ml
• 510 screw thread
• Removable drip tip 510
• Zinc alloy, steel and pyrex
• Compatible with Eleaf EC coils
• Power: 75 W
• Capacity: one 18650 battery (not supplied)
• Max charge current: 2A
• Compatible battery: discharge power ≥ 25A
• Coils supplied: 1 Eleaf EC-A 0.5 ohm coil and 1 Eleaf EC 0.3 ohm coil
• Maximum power: 50 W for the Eleaf EC-A 0.3 ohm coil and 40 W for the Eleaf EC-A 0.5 ohm coil
• Type of inhalation: direct
• Type of vapor: airy
• vapor: warm to hot
• Percentage of VG in the liquid for optimum use: ≥ 50% Vegetable Glycerin
• Level: regular

Use

- Charging your Eleak Pico Plus box:
Unscrew the cap on the top of the box by a quarter turn and insert your 18650 battery with minimum discharge current of 25 A.
Plug your USB cable into the port on your Eleaf box (USB-C socket). You can also vape while charging your box. Your box has a charge indicator.

- Switching your Pico Plus on or off:
Press the switch 5 times in succession in less than a second to switch your box on or off.

- Changing modes or access the menu:
Press the "power" button 3 times in succession to access the different modes and the menu. You can navigate using the "+" and "-" buttons and confirm by pressing the "power" button.

-Locking the power:
Press the "+" and "-" buttons simultaneously to lock the power.

- Activating "Dry-Proof" mode:
Press the "+" and "power" buttons simultaneously to activate or deactivate "Dry-Proof".

- Filling your clearomizer :
Unscrew the top cap by a quarter turn. Insert the e-liquid through the curved slot, taking care not to protrude beyond the metal neck. You should not fill more than 90% of your tank.

- Changing the coil :
Unscrew the base of the tank and the coil. Change the coil and screw it back on. Soak your Eleaf EC coil in a few drops of e-liquid before vaping. Remember to change your coils every 10 to 15 refills.

- Adjusting the Airflow :
Turn the Airflow ring to adjust the airflow to your liking. For vapor lovers, make sure you open the Airflow. Conversely, for more flavour, close the Airflow more.

- Vaping:
Press the switch to vape.

Advice

- We suggest you put a few drops of e-liquid on the cotton part of your coil. To avoid a burnt taste, make sure the impregnation time is at least 30 seconds.

- Remember to respect the power values of your Eleaf EC coils.

-To preserve the life of your replacement batteries, we recommend using a charger specially designed for this purpose.
