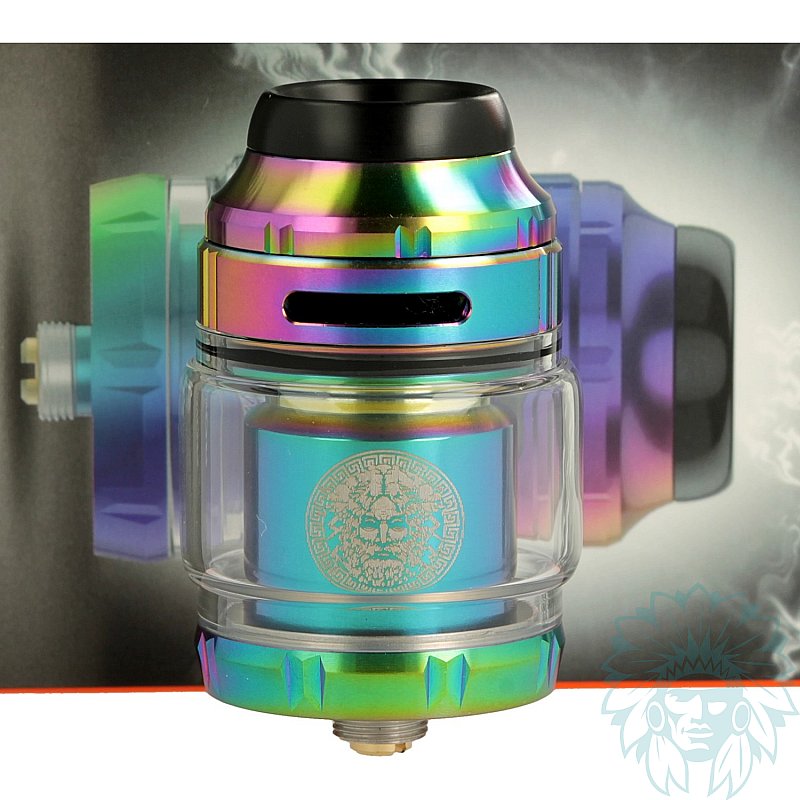

Geek Vape Zeus X RTA atomizer

GeekVape Zeus X RTA atomizer

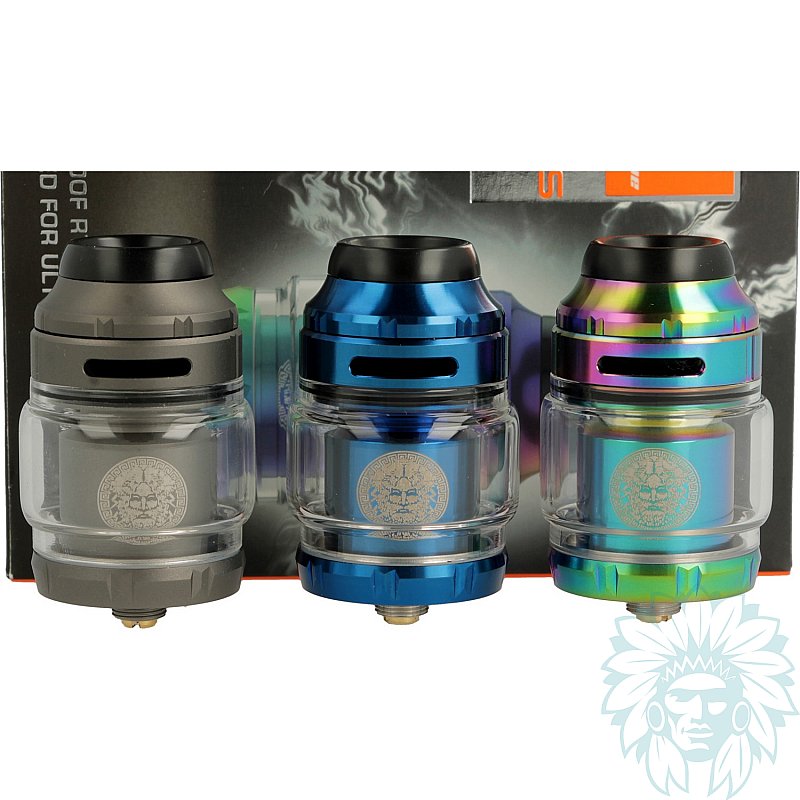

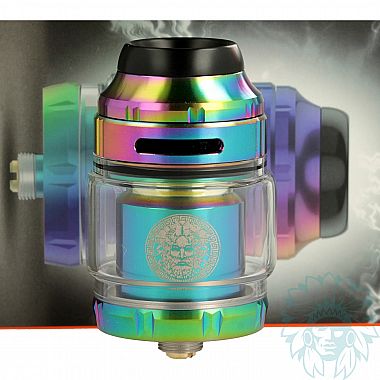

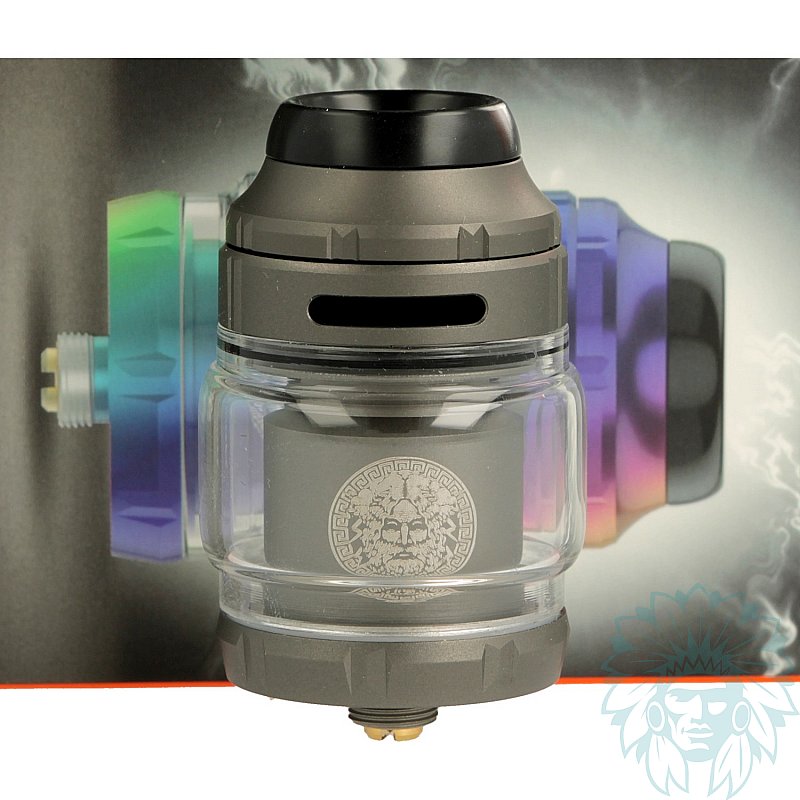

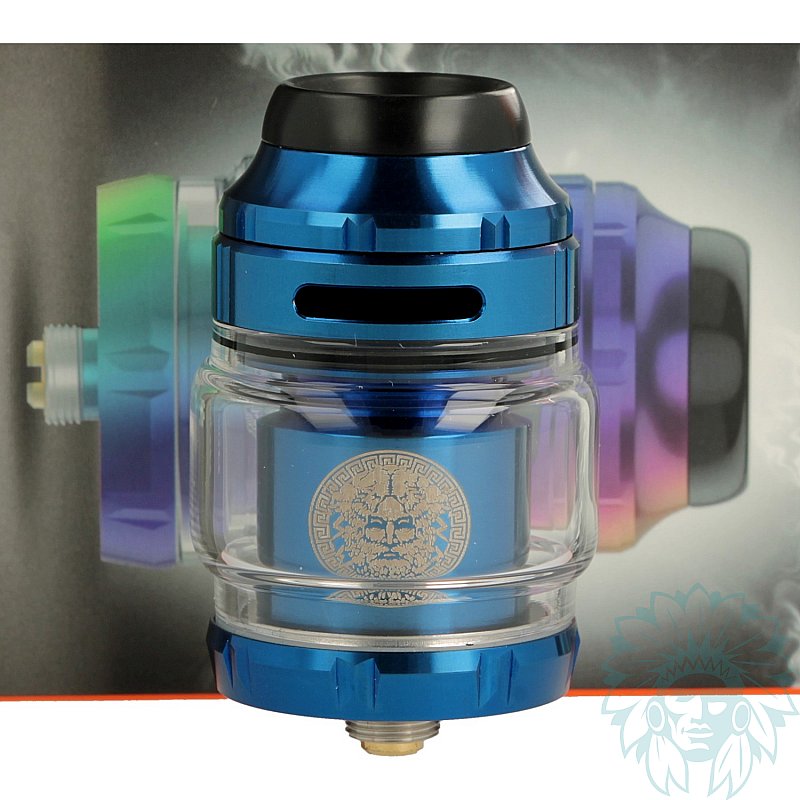

GeekVape's Zeus X RTA atomizer is the third generation of the Zeus. Its imposing 25 mm diameter is offset by ease of use and assembly.

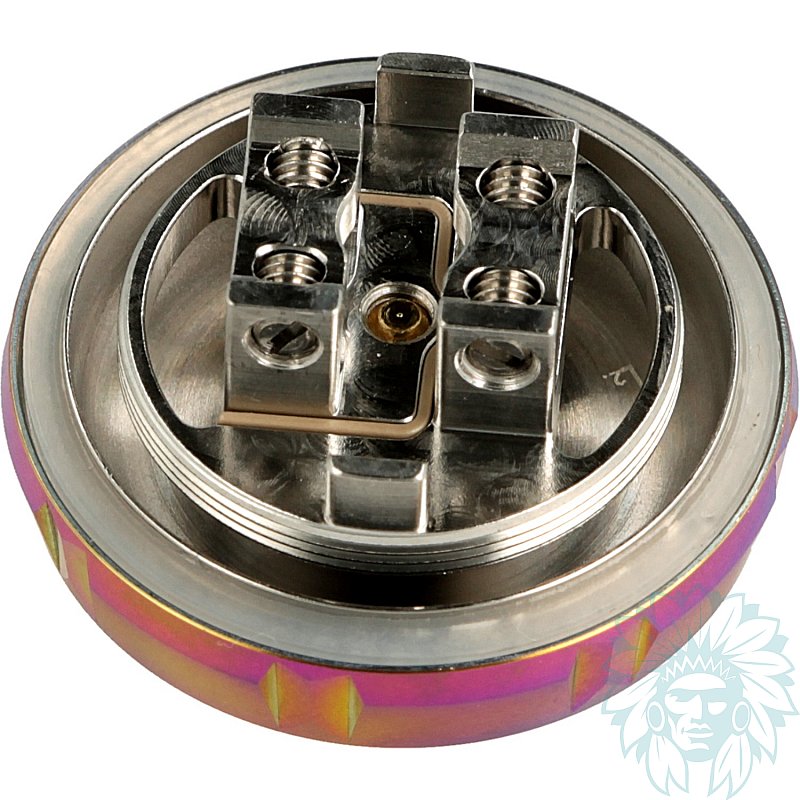

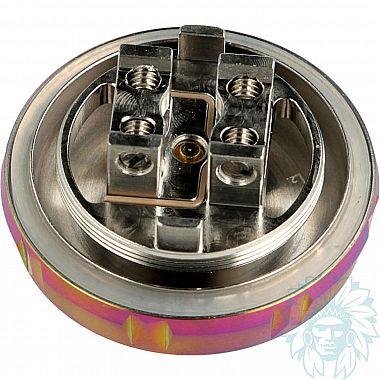

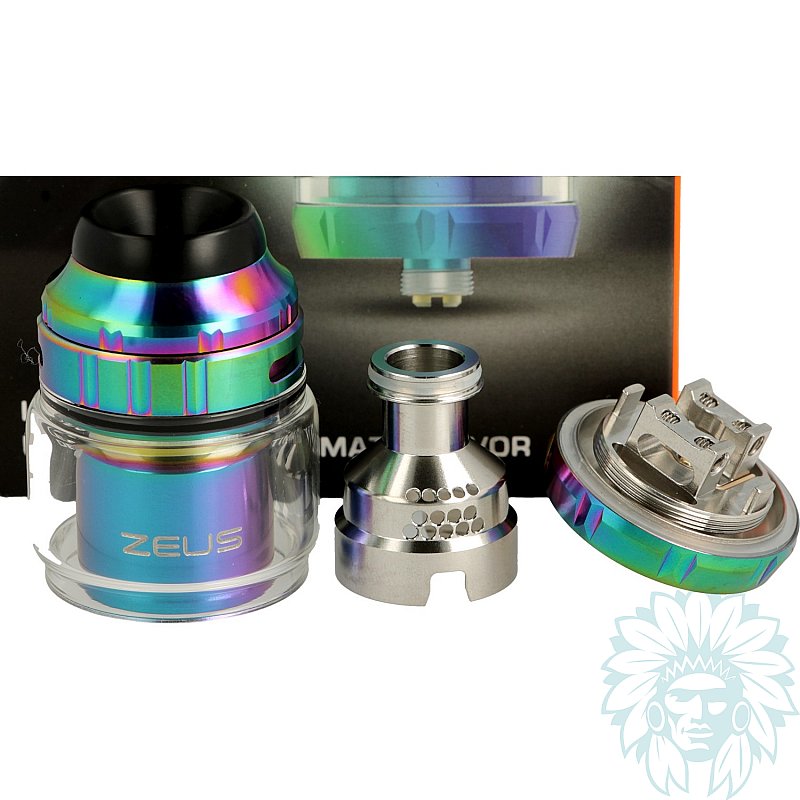

Zeus X mounting plate.

The RTA mounting plate has become more versatile and powerful. It can be mounted as a double or single coil. The airflow at the top of the top cap limits condensation and the effects of liquid seepage. The wide opening is filled from the top using a cleverly designed quarter-turn system.

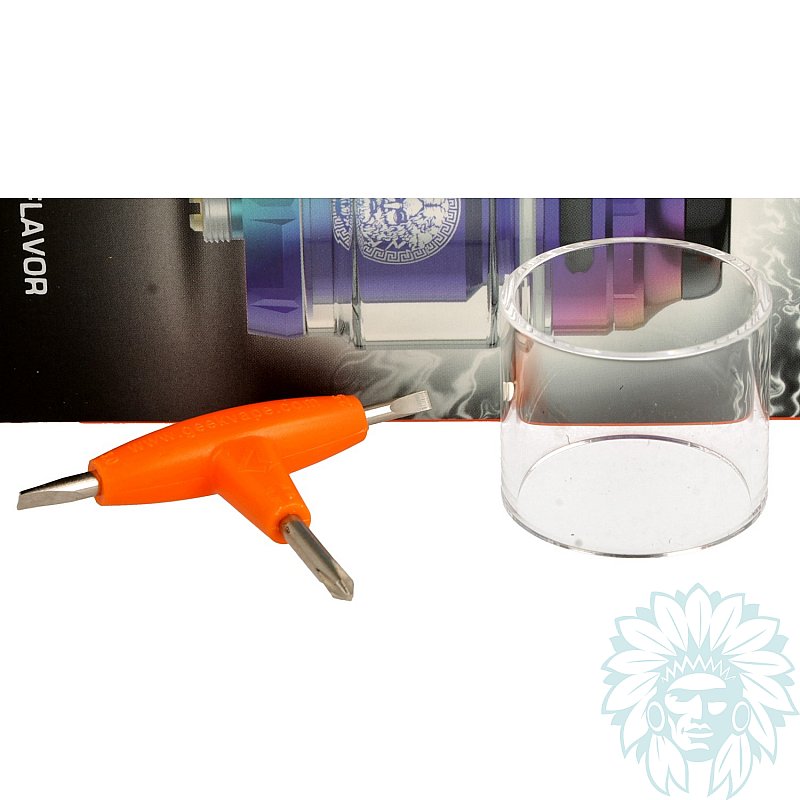

Tank glass 4.5 ml capacity.

The bulb tank glass holds around 4.5 ml. For a smaller capacity, a 3.5 ml straight tank glass is also supplied.

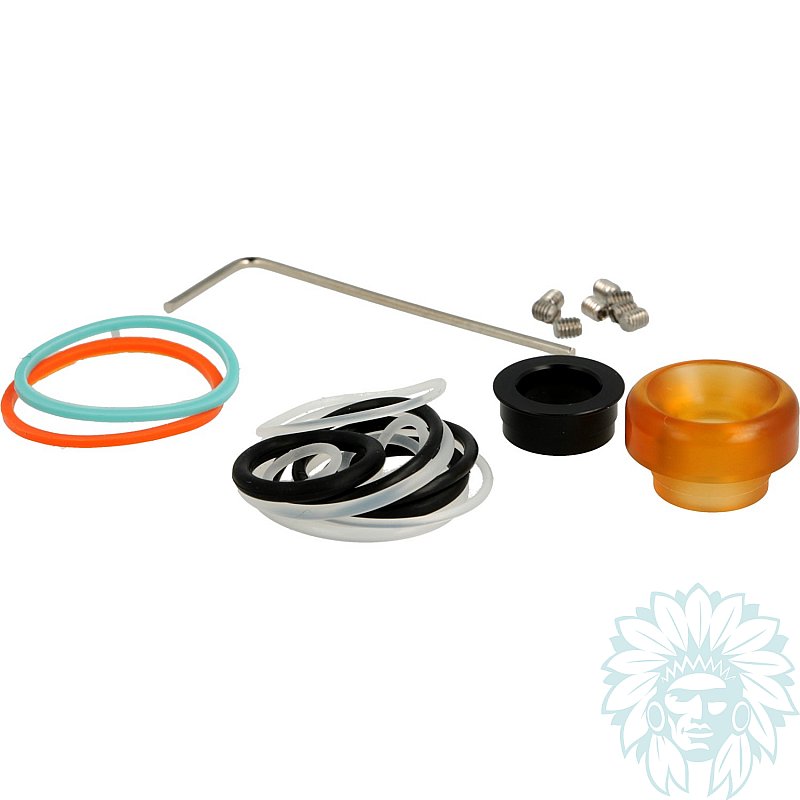

Kit supplied with the Zeux X.

The top cap has an 810 connection, but for added versatility the atomizer comes with a 510 adaptor, a real plus for this type of equipment.

The whole zeus is of very good manufacture and perfectly adjusted. The plate is very well machined. The wide grooves easily accommodate the cotton. Cottoning becomes child's play.

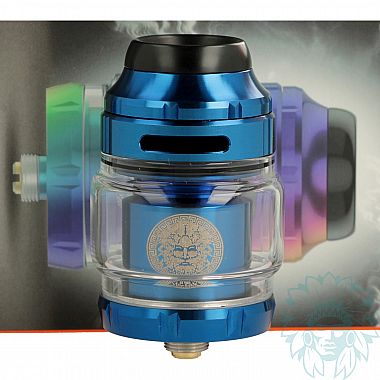

Geek Vape Zeus X RTA atomizer.

Calumette's review: An imposing, well-designed atomizer that's easy to assemble. The finish is top-notch and you can feel it when you vape, which is pleasant and very accomplished.

E-liquid not included: Complete your purchase with e-liquid.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Rebuildable, easy to use
• Large tank capacity
• Double-coil or single-coil assembly
• Top filling

Kit contents

• 1 GeekVape Zeus X RTA atomizer

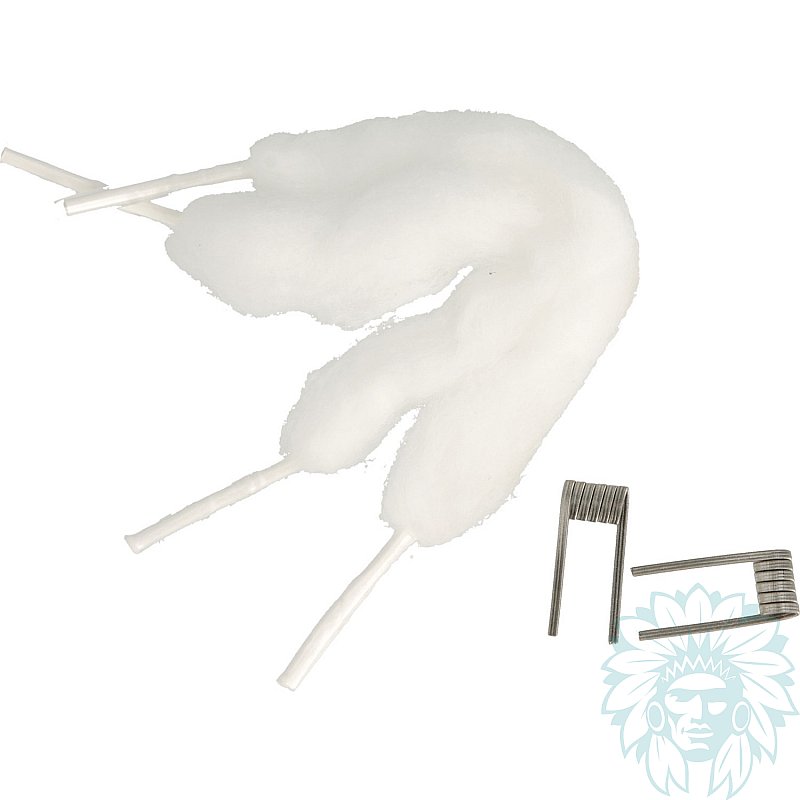

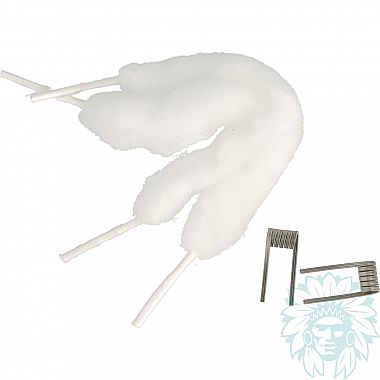

• 2 0.40 ohm Fused Clapton coils
• 1 spare straight tank glass 3.5 ml
• 1 drip tip 510 adaptor
• 1 assembly tool
• 6 replacement screws
• 4 cotton wicks
• 1 drip tip 810 resin
• 1 O-rings kit
• 1 user manual

Specifications

• Length: 4.4 cm
• Diameter : 2.5 cm
• Weight : 60 g
• Capacity : 4.5 ml
• 510 screw thread
• 810 drip tip
• Pyrex tank glass
• Inhalation type: direct
• vapor type: airy
• vapor: warm
• Percentage of VG in liquid for optimum use: ≤ 90% Vegetable Glycerin
• Level: expert

Use

- Placing your coils:
Unscrew the base of your atomizer. Unscrew the central screws on the plate using the screwdriver supplied. Place your coils on top of the plate, having cut the coil tabs beforehand, and tighten the screws.

Place the coils on the plate.

Carefully cut your cotton (about 0.5 cm wide) and roll it to fit inside your coils. Redirect the wicks into the oblong holes on each side and trim the excess so that the cotton does not protrude from the plate.

Place the cotton in the coils, passing through the grooves in the plate.

Soak your cotton well before closing.

The notches in the atomisation chamber.

When screwing the base back on, make sure you put the plate back into the notches in the atomisation chamber.

We recommend that you check the resistance in ohms of each of your coils using an ohm meter. If the resistance is too low or short-circuited, your equipment could be seriously damaged.

Advice

- We suggest you try several different threads and cottons to find your ideal vape. The thinner the thread, the higher the resistance and vice versa.
