Voopoo Drag X Pod kit

Voopoo Drag X Pod kit

The Voopoo Pod Drag X kit has all the advantages of the Drag S, but differs in that it incorporates an 18650 battery and increases its power output from 60 to 80W. The leather-look design and stitching add an ultra-fashionable touch.

Drag X replacement battery door

Presented as a pod with its rechargeable cartridge, the Drag X is compact but taller than the Drag S (12.4 cm Drag X compared with 11.5 cm Drag S), so it can take an 18650 battery. Charging is via a USB type C cable.

Voopoo Drag X screen

The on-board Gene chipset offers a host of functions. The device incorporates power control. It automatically detects the value of the coil and sets the maximum power it can handle. No more risk of error or dry hits due to incorrect settings. This safety feature is available in "Smart" mode.

The second mode available is "RBA". The box operates in the absence of power-related safety: this means that the battery is above the values recommended by the coil. As the name suggests, this mode is useful for cartridges with a rebuildable RBA tray.

Unlike its big sister, the Drag S, it does not have an automatic mode.

The display shows the charge indicator, the number of puffs, the value of the coil in ohms and the operating voltage. There's even a clock.

Voopoo Drag X cartridge

The large-capacity 4.5 ml PCTG cartridges are designed for direct or slightly restrictive draw. The magnetic cartridge is easy to fit. Filling is from the bottom. Drag X is equipped with the famous VM6 0.15 ohm and VM1 0.3 ohm PnP coils for a powerful, airy vape. If you want an indirect draw, simply use V-Suit cartridges and Voopoo PnP coils greater than or equal to 1 ohm.

Voopoo PnP coil

Power consumption of the PnP coils sold in the kit:

• VM6 0.15 ohm PnP coil from 60 to 80 W.
• VM1 0.3 ohm PnP coil from 32 to 40 W.

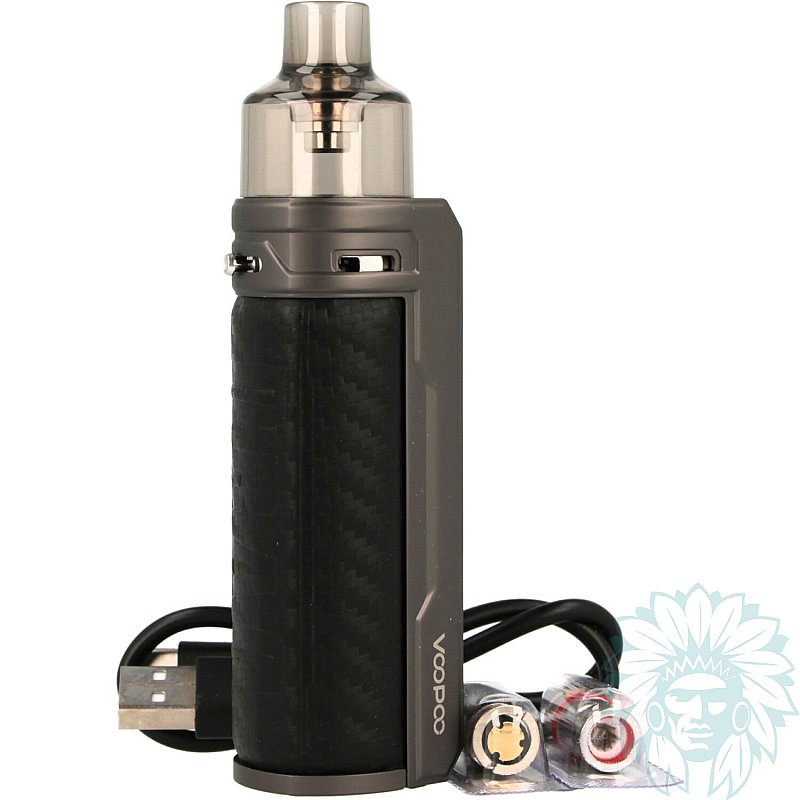

Voopoo Drag X complete kit

18650 battery sold separately

Calumette's review: With an 18650 battery, Drag X gains in autonomy and power.

E-liquid not included: Complete your purchase with e-liquids.
For a first purchase, we advise you to test several different liquids, for example at least one Classic flavour and at least one fruity flavour.

Advantages

• Quality of manufacture
• Design
• 80 W power

Kit contents

• 1 Voopoo Drag X pod
• 1 Drag S/X/Max 4.5 ml cartridge
• 1 VM1 0.3 ohm PnP coil
• 1 VM6 0.15 ohm PnP coil
• 1 USB-C cable
• 1 user manual

Specifications

• Length: 12.4 cm
• Width: 2.79 cm
• Depth: 3.27 cm
• Weight: 118 g (without battery)
• Capacity: 4.5 ml
• Magnetic contact
• Proprietary plastic drip tip
• PCTG tank
• Compatible with Voopoo PnP coils
• Power: 80 W
• Max charge current: 2 A
• Compatible battery: 1 18650 battery
• Minimum discharge power: ≥ 25 A
• Coils supplied: one Voopoo PnP VM1 0.3 ohm coil and one PnP VM6 0.15 ohm coil
• Power usage of the PnP VM6 0.15 ohm coil from 60 to 80 W and PnP VM1 0.3 ohm coil from 32 to 40 W
• Type of inhalation: direct
• vapor type: airy
• vapor: warm to hot
• Percentage of VG in liquid for optimum use: ≥ 50% Vegetable Glycerin
• Level: regular

Use

- Switching on/off your Voopoo Drag X pod:
Perform 5 consecutive presses on the swich.

- Recharging your Voopoo Drag X pod:
Plug the USB-C cable into your computer's USB port or wall socket, after inserting an 18650 battery into the slot provided.

-Adjusting the power:
Use the "+" and "-" buttons to change the power of your box.

- Setting the time:
Press the power button and the "+" and "-" buttons to access the clock setting.

- Locking your pod:
Press the power and "+" buttons simultaneously to lock the power of your device.

- Changing the operating mode:
Press the power button 3 times to switch to "Smart" and "RBA" mode.

- Refilling your Voopoo cartridge:
Pull on the drip of the cartridge to remove it from the pod. Lift the Teflon cover on the bottom of the cartridge and fill it. Then put your cartridge back in place.

- Changing the coil :
Pull on the drip of the cartridge to remove it from the pod. Then remove the coil and fit the new one. Put your cartridge back in place.

Advice

- We suggest you put a few drops of e-liquid on the cotton part of your Voopoo PnP coil. This will prevent a burnt taste.
